Product Description
The Sargent 2870-10G24-LL-03 is a 10 line cylindrical lock with Entry function in Bright Brass (US3/605). Key locks and unlocks the outside lever. Inside lever is always free for exit. Grade 1 certified for heavy commercial use.
Ships prepped for a Small Format Interchangeable Core (SFIC) — the core is not included. Order your SFIC (Best-style) core separately to match your key system; it drops into the figure-8 housing with a control key for an instant rekey without removing the lock.
| SKU Breakdown: 2870-10G24-LL-03 | |
| 2870 | Backset/chassis configuration |

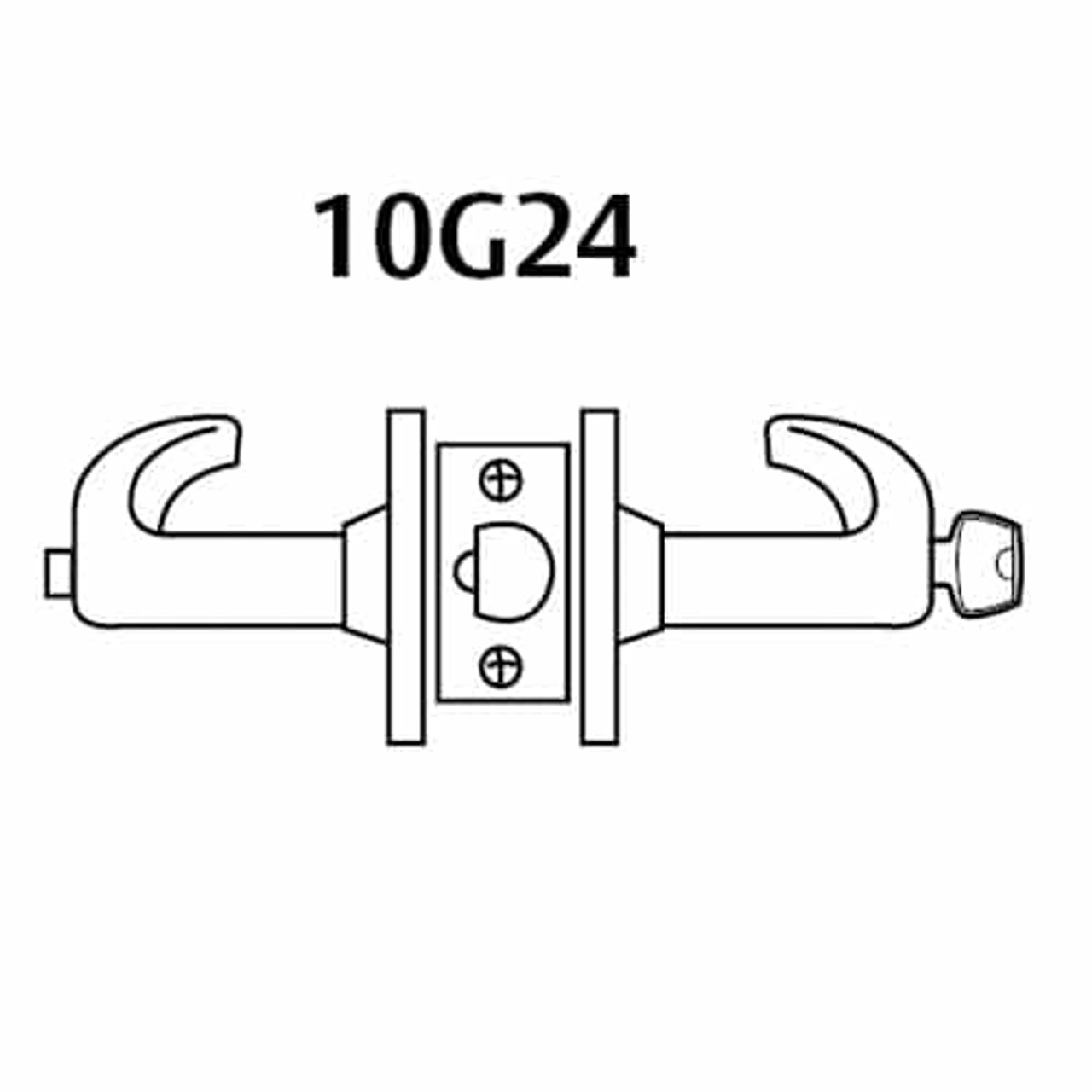

| 10G24 | Series and Entry function |
| LL | Trim: L Lever |
| 03 | Finish: Bright Brass |
Pro-Tip from Our Locksmiths: Sargent cylindrical locks are a solid mid-range choice for commercial jobs where mortise prep isn't in the budget. Grade 1 certified with a clean, professional look.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 2870-10G24-LL-03 |
| Series | Sargent 10 line |
| Function | Entry |
| Trim / Lever | L Lever |
| Finish | Bright Brass (US3/605) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Entry function for commercial access control
- Bright Brass (US3/605) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

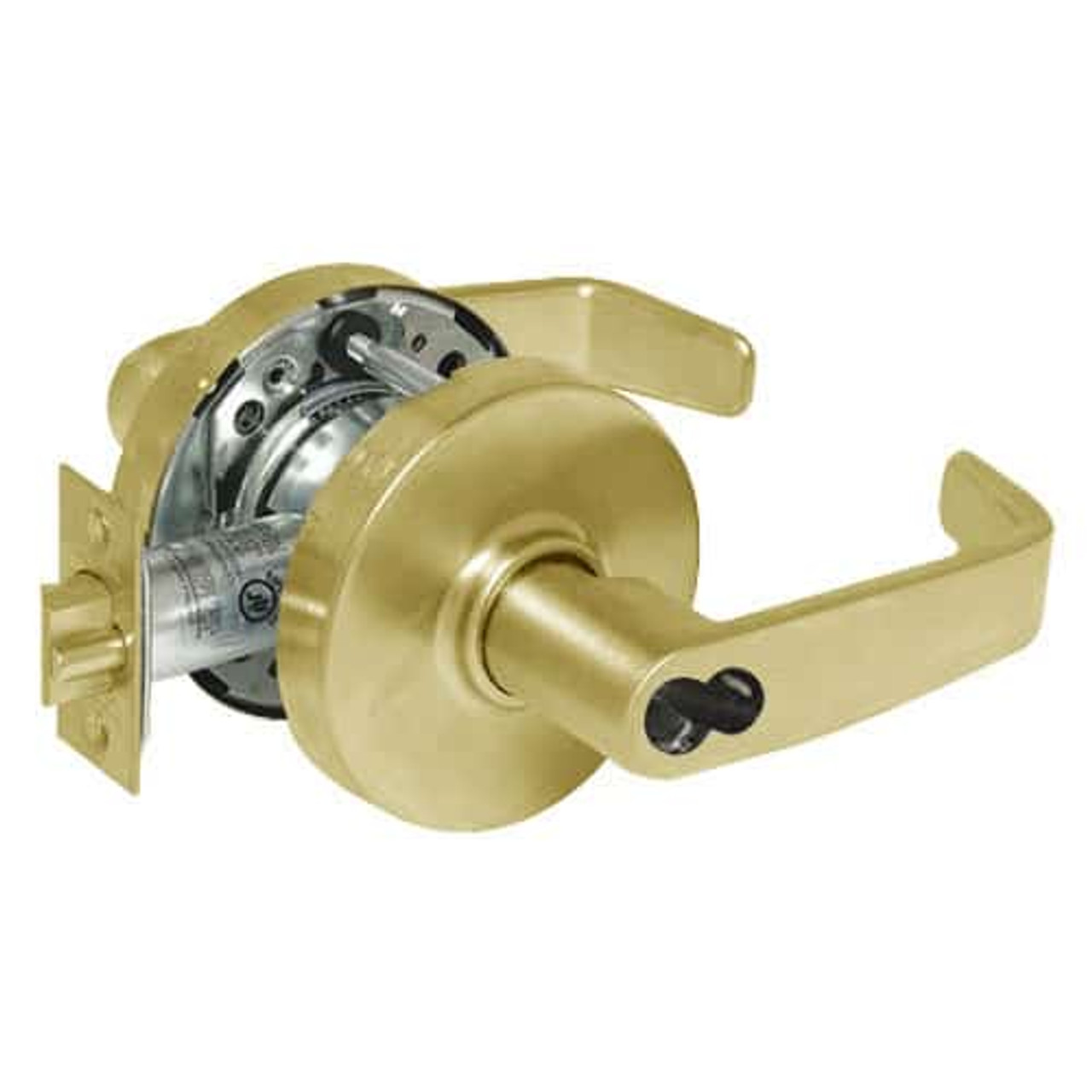

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
