Product Description
Grade 1 cylindrical lock — commercial-grade security in a standard bore install.

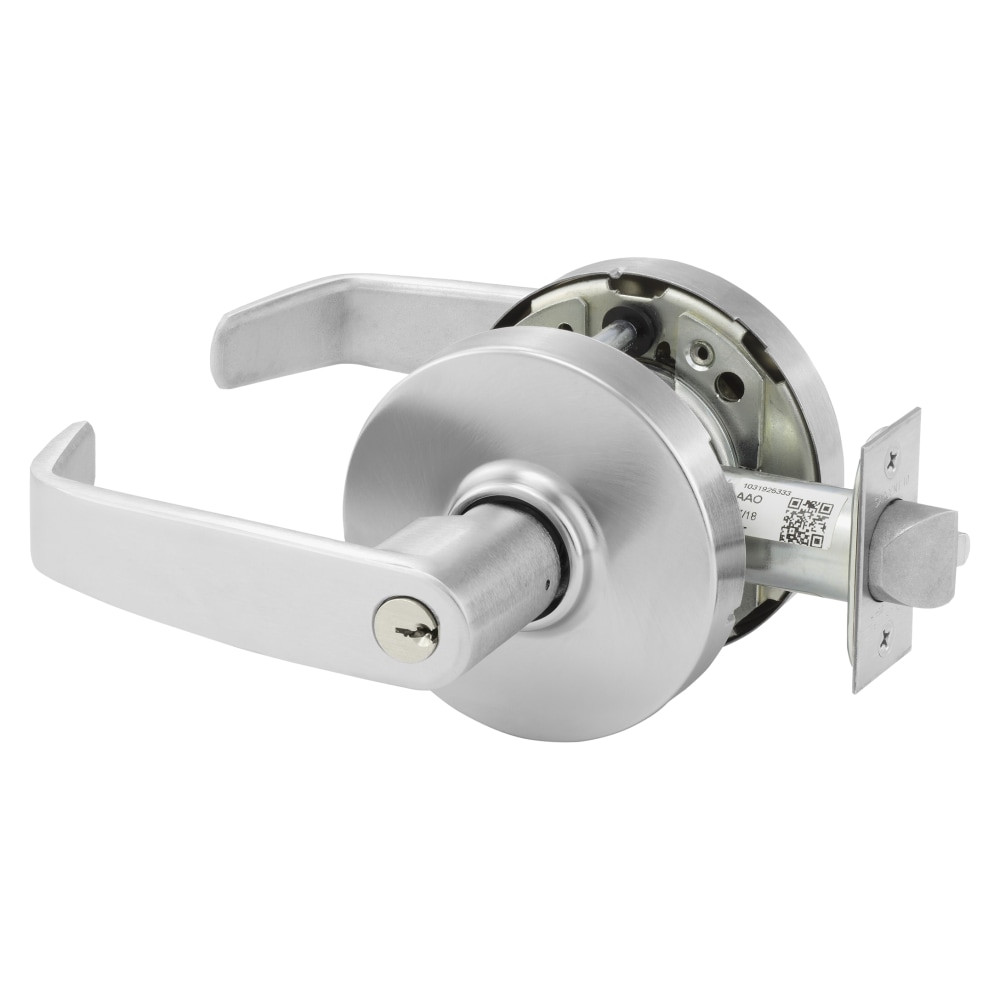

The Sargent 2870-11G05-LB-10B is a Grade 1 cylindrical lock from the 11 Line with Entry/Office function.
| SKU Breakdown: 2870-11G05-LB-10B | |
| 2870 | ANSI curved lip strike (#808) + SFIC prep, ships with disposable plastic construction core |
| 11G05 | Series and Entry/Office function |
| LB | Lever/rose design: LB |
| 10B | Finish: Oil Rubbed Bronze |
This unit comes with L Rose, B Lever in Oil Rubbed Bronze — the 10B finish with a living patina that develops character over time. Popular in boutique hotels, upscale restaurants, and residential-feeling commercial spaces. Cylindrical locks install in a standard 2-1/8" bore hole — no mortise pocket required. Fastest commercial lock to install.
Pro-Tip from Our Locksmiths: Entry/Office vs. Storeroom: Entry/Office stays unlocked after one key turn — perfect for office doors during business hours. If you need the door to relock automatically every time it closes, you want Storeroom (8204) instead.
| Certification | ANSI A156.2, BHMA Grade 1 |
| Backset | 2-3/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating for cylindrical locks
- Standard 2-1/8" bore — fast install, no mortise pocket needed
- Through-bolt mounting for maximum resistance to lever torque attacks
- Oil Rubbed Bronze finish
- Field reversible — works on any swing direction
- SFIC prep with a plastic disposable construction core (70- option) — order the permanent small-format (Best-style) interchangeable core separately to match your key system (drops into the figure-8 housing with a control key).
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 10-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Entry/Office
Series 11
Finish Oil Rubbed Bronze
Trim L Rose, B Lever
Cylinder SFIC
Mount Type Cylindrical
