Product Description
The Sargent 2870-65G05-KB-10 is a 6500 cylindrical lock with Entry/Office function in Satin Bronze (US10/612). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 2 certified (ANSI/BHMA A156.2).
Ships prepped for a Small Format Interchangeable Core (SFIC) with a plastic disposable construction core (70- option) — the permanent SFIC core is not included. Order your SFIC (Best-style) core separately to match your key system; it drops into the figure-8 housing with a control key for an instant rekey without removing the lock.
| SKU Breakdown: 2870-65G05-KB-10 | |
| 2870 | ANSI curved lip strike (#808) + SFIC prep, ships with disposable plastic construction core |
| 65G05 | Series and Entry/Office function |
| KB | Trim: B Lever |
| 10 | Finish: Satin Bronze |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 2870-65G05-KB-10 |
| Series | Sargent 6500 |
| Function | Entry/Office |
| Trim / Lever | B Lever |
| Finish | Satin Bronze (US10/612) |
| Mount Type | Cylindrical |
| Cylinder | SFIC prep (70-): plastic disposable construction core provided |
| Grade | ANSI/BHMA Grade 2 |
- ANSI/BHMA A156.2 Grade 2 cylindrical lock
- Entry/Office function for commercial access control
- Satin Bronze (US10/612) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.

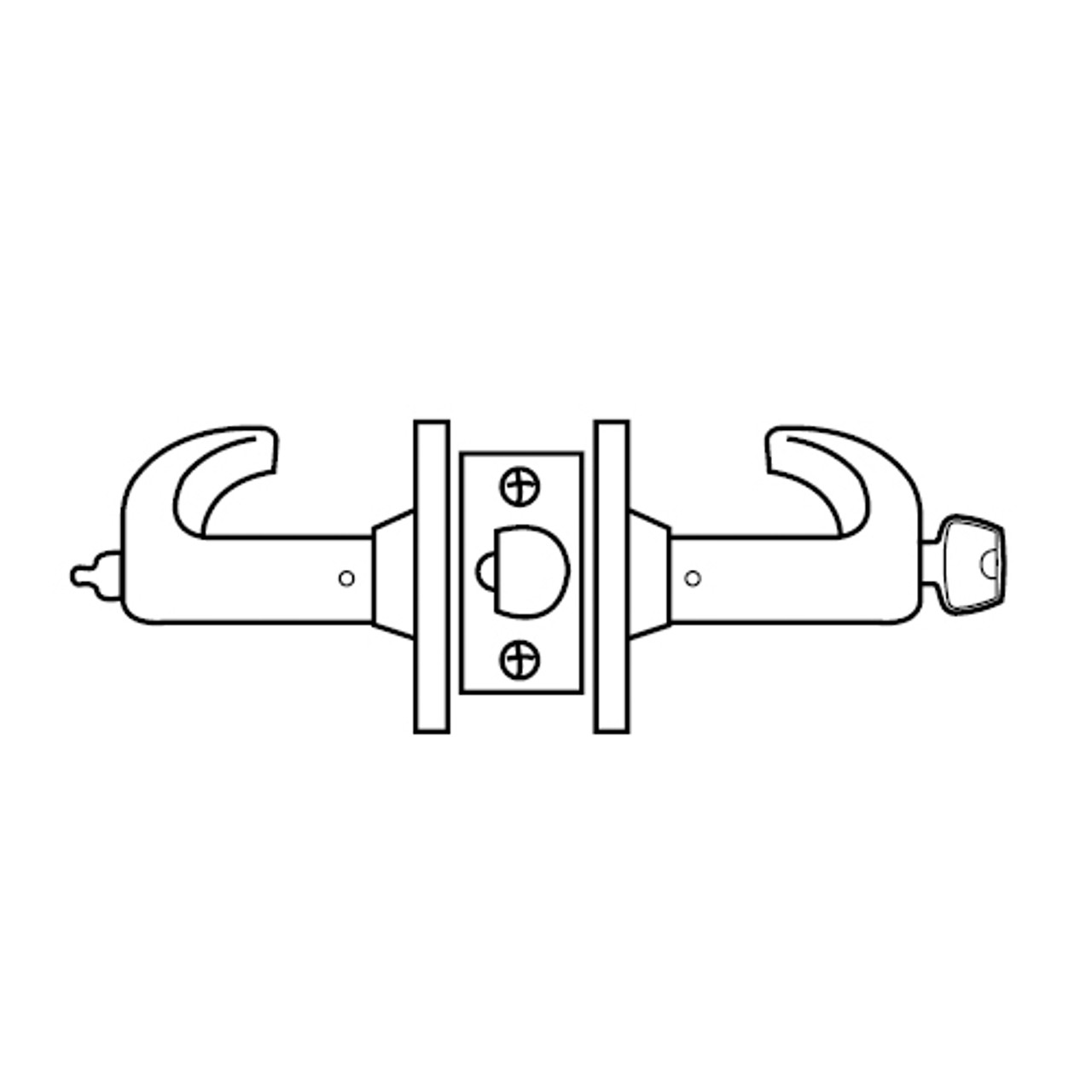

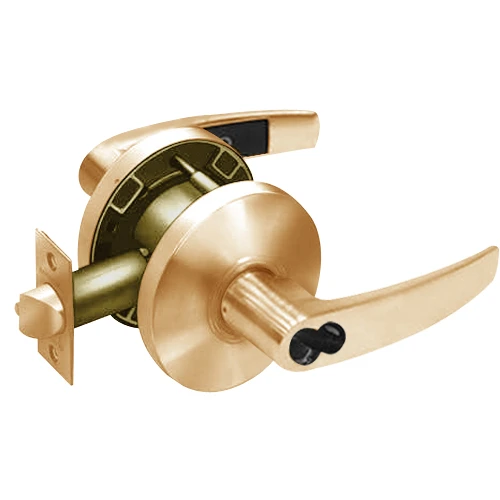

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
