Product Description
Outside lever always locked, key required every time. Inside always free. Same Storeroom function as a mortise lock, but in a cylindrical body that installs in minutes.

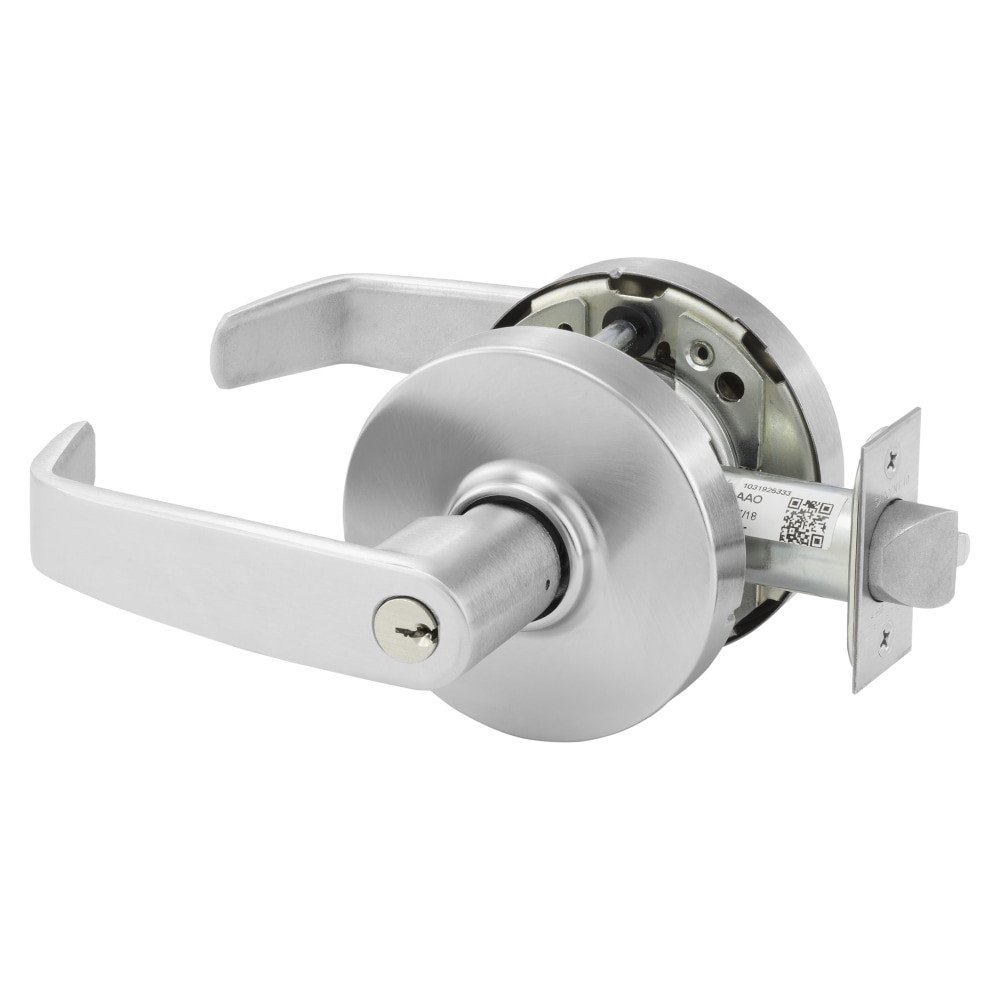

The Sargent 28LC-7G04-LL-BSP is a Grade 1 cylindrical lock from the 10 Line with Storeroom function — outside lever always locked, key required every entry. Inside always free.
| SKU Breakdown: 28LC-7G04-LL-BSP | |
| 28LC | Backset/chassis configuration |
| 7G04 | Series and Storeroom function |
| LL | Lever/rose design: LL |
| BSP | Finish: Black Suede |
This unit comes with L Lever in Black Suede — a textured matte black finish that's more forgiving than smooth black. Hides scratches, fingerprints, and daily wear better than any polished finish. Cylindrical locks install in a standard 2-1/8" bore hole — no mortise pocket required. Fastest commercial lock to install.
| Certification | ANSI A156.2, BHMA Grade 1 |
| Backset | 2-3/4" |
| Warranty | 7-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating for cylindrical locks
- Standard 2-1/8" bore — fast install, no mortise pocket needed
- Through-bolt mounting for maximum resistance to lever torque attacks
- Black Suede finish
- Field reversible — works on any swing direction
Free Expert Support — Not sure which function, finish, or trim you need? Call (877) 365-5625 and talk to a real locksmith — not a call center. We've spec'd Sargent hardware on thousands of commercial jobs and we'll make sure you order the right product the first time.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
