Product Description
Outside lever always locked, key required every time. Inside always free. Same Storeroom function as a mortise lock, but in a cylindrical body that installs in minutes.

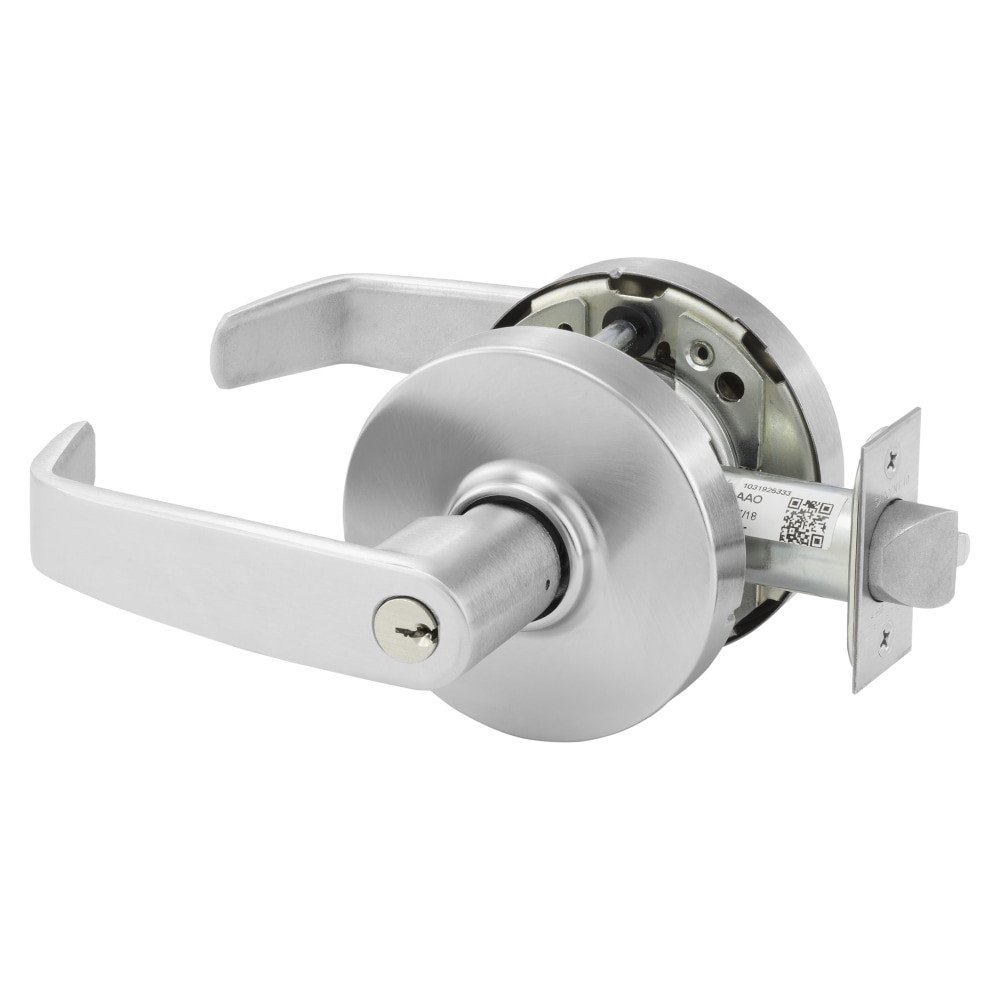

The Sargent 28LC-7G04-LL-BSP is a Grade 2 cylindrical lock from the 7 Line with Storeroom function — outside lever always locked, key required every entry. Inside always free.
| SKU Breakdown: 28LC-7G04-LL-BSP | |
| 28LC | 28 = 808 ANSI strike; LC = less cylinder |
| 7G04 | Series and Storeroom function |
| LL | Lever/rose design: LL |
| BSP | Finish: Black Suede |
This unit comes with L Lever in Black Suede — a textured matte black finish that's more forgiving than smooth black. Hides scratches, fingerprints, and daily wear better than any polished finish. Cylindrical locks install in a standard 2-1/8" bore hole — no mortise pocket required. Fastest commercial lock to install.
| Certification | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Backset | 2-3/4" |
| Warranty | 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 2 — Sargent rates the 7 Line at 2-1/2 times the Grade 2 cycle requirement
- Standard 2-1/8" bore — fast install, no mortise pocket needed
- Through-bolt mounting for maximum resistance to lever torque attacks
- Black Suede finish
- Field reversible — works on any swing direction
Free Expert Support — Not sure which function, finish, or trim you need? Call (877) 365-5625 and talk to a real locksmith — not a call center. We've spec'd Sargent hardware on thousands of commercial jobs and we'll make sure you order the right product the first time.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
