Product Description

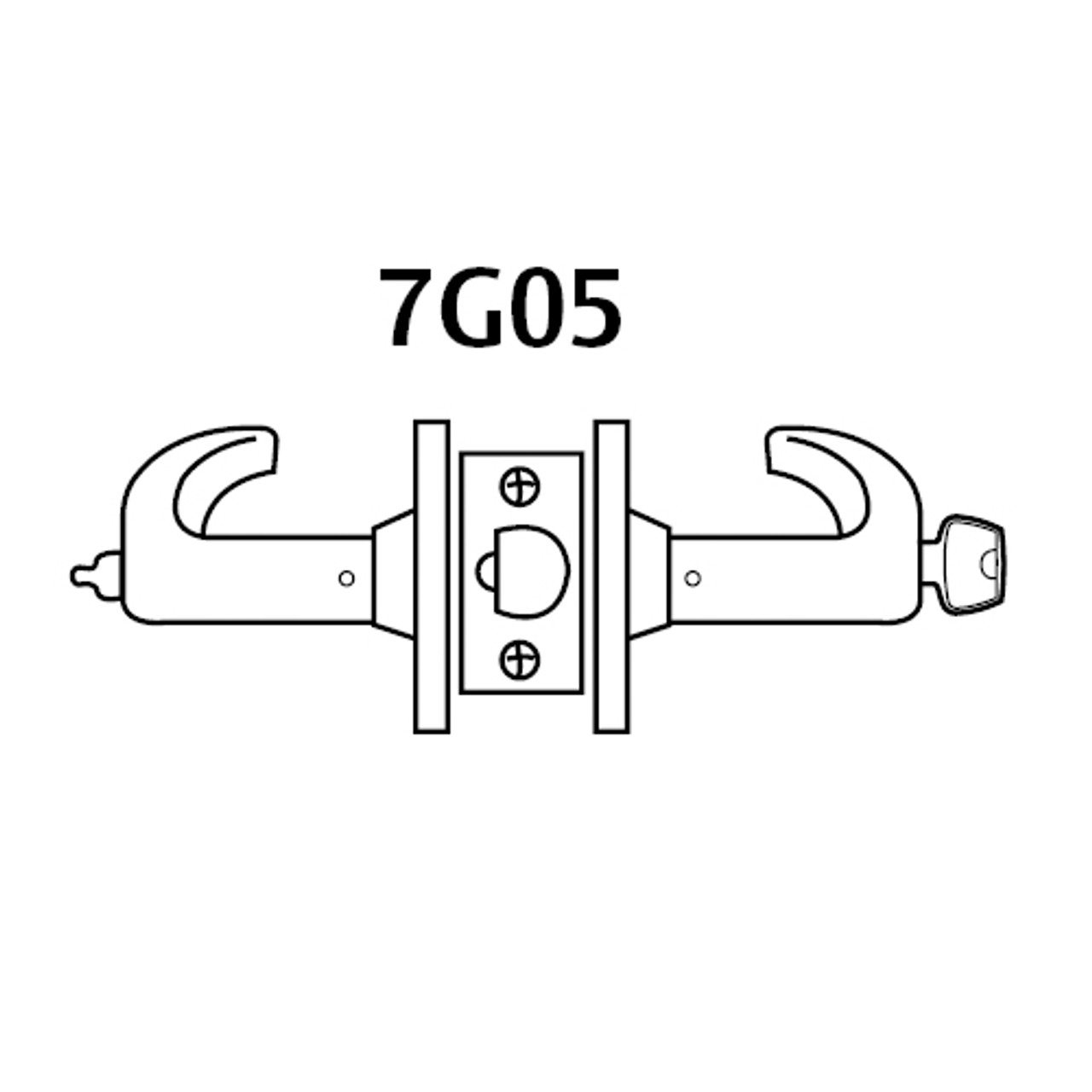

The Sargent 28LC-7G05-LB-26D is a 7 Line cylindrical lock with Entry/Office function in Satin Chrome (US26D/626). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 2 certified for standard-duty commercial use.
Ships less cylinder — order a Sargent lever cylinder separately to match your existing keyway.
| SKU Breakdown: 28LC-7G05-LB-26D | |
| 28LC | 28 = 808 ANSI strike; LC = less cylinder |
| 7G05 | Series and Entry/Office function |
| LB | Trim: B Lever |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28LC-7G05-LB-26D |
| Function | Entry/Office |
| Trim / Lever | B Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Entry/Office function for commercial access control
- Satin Chrome (US26D/626) finish
Works With: Compatible with Sargent conventional cylinders.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 5-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Entry
Finish Satin Chrome
Trim Lever
Mount Type Cylindrical
Cylinder Less Cylinder
