Product Description

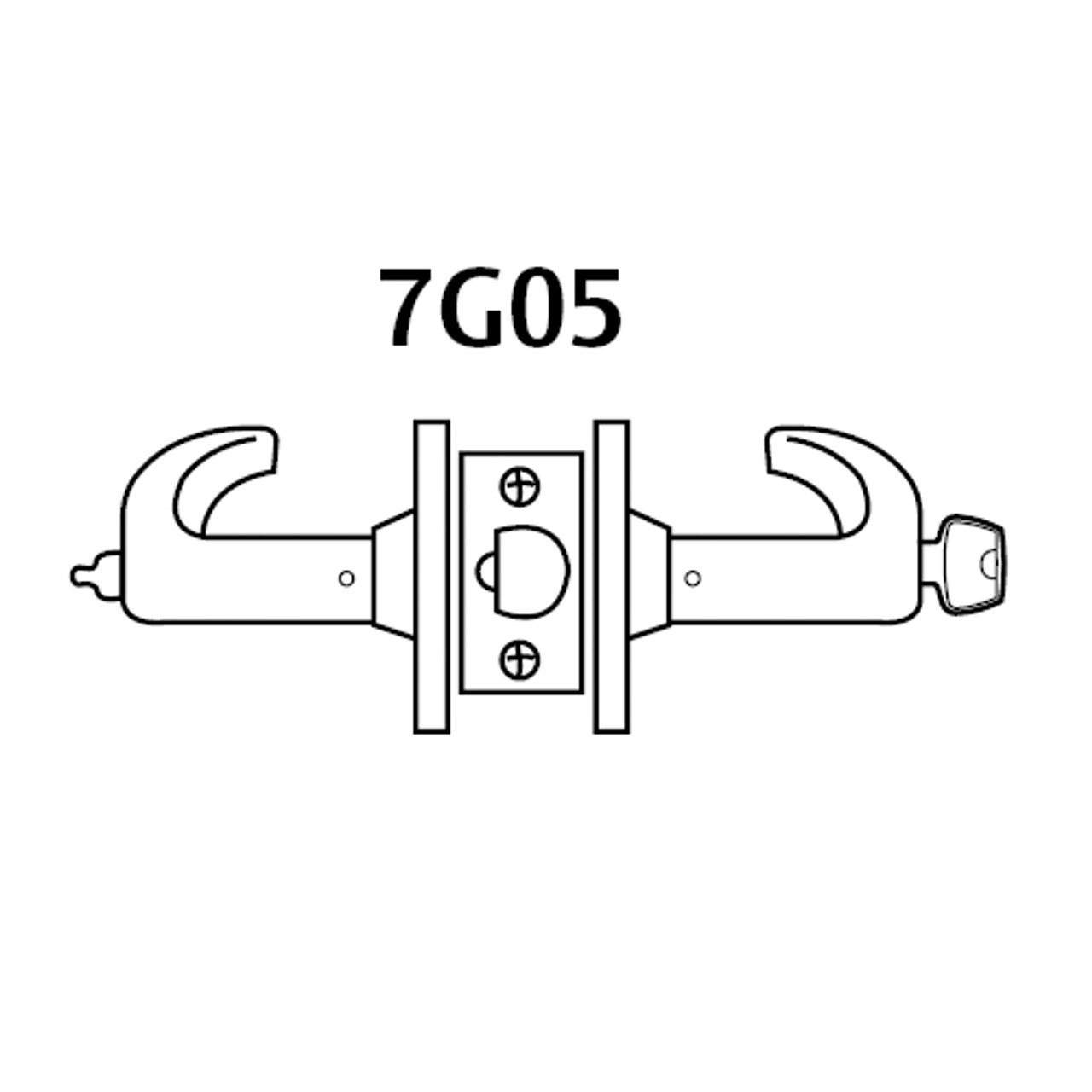

The Sargent 28LC-7G05-LP-04 is a 7 Line cylindrical lock with Entry/Office function in Satin Brass (US4/606). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 2 certified for standard-duty commercial use.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: 28LC-7G05-LP-04 | |
| 28LC | 28 = 808 ANSI strike; LC = less cylinder |
| 7G05 | Series and Entry/Office function |
| LP | Trim: P Lever |
| 04 | Finish: Satin Brass |
Pro-Tip from Our Locksmiths: The 7 Line is Sargent's Grade 2 cylindrical lock, tested to 2-1/2 times the Grade 2 cycle requirement. It suits standard-duty offices and interior doors without mortise lock pricing.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28LC-7G05-LP-04 |
| Function | Entry/Office |
| Trim / Lever | P Lever |
| Finish | Satin Brass (US4/606) |
| Mount Type | Cylindrical |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Entry/Office function for commercial access control
- Satin Brass (US4/606) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
