Product Description

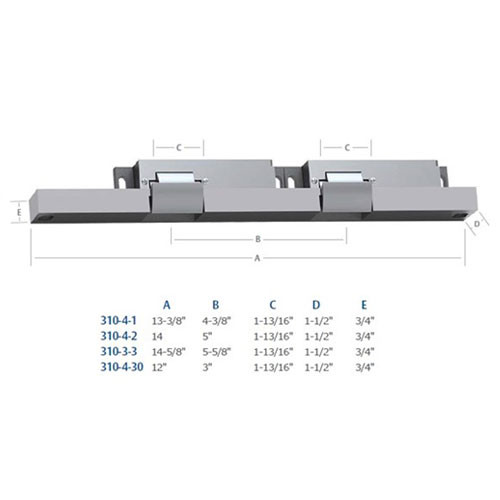

310-4-1-F-12D-LCBMA-605 Folger Adam 310-4-X Series Fail Safe Electric Strike for Surface Vertical Rod Exit Devices with Latchbolt & Locking Cam Monitor in Bright Brass Finish
The Folger Adam 310-4-1-F-12D-LCBMA-605 series is used for both leaves of a pair of doors when spacing of the vertical rod is between 4" and 4-3/4". The 310-4-x vertical surface mounted series is designed for heavy duty applications on single or double doors. These electric strike series are certified to ANSI/BHMA A156.31, Grade 1 and all stainless steel construction of this device makes it ideal for high abuse applications. This line of electric strikes will accommodate rim exit devices with a swinging, Pullman style latchbolt.
The latchbolt must be free-latching and remain projected while the door is open. Mechanisms that hold the latchbolt retracted while the door is open, and automatically release it when the door is closed, must be removed or made inoperative.
Features and Benefits:
- Bright Brass finish
- Static strength: 1,500 lbs
- Dynamic strength: 70 ft-lbs
- RoHS compliant
- Endurance rating: 500,000 cycles
- PK keeper standard
- Latchbolt & locking cam monitor with auxiliary switch
- Non-handed
- Fail safe
- Plug-in connector
- Pullman keeper
- Tamper-resistant, heavy duty construction
- Voltage: .51 Amps at 12 VDC
- UL 1034, burglary-resistant listed
- Constructed entirely of stainless steel for strength and corrosion resistance
- Adjustable keeper to allow for door and frame misalignment
- The latchbolt of the exit device must be the "Pullman" or beveled type
- The bottom rod of the exit device must be removed or made inoperative
