Product Description
The Sargent 4874-10B is a 8200 Series mortise lock in Oil Rubbed Bronze (US10B/613). Built to ANSI/BHMA Grade 1 standards with a heavy-duty cast stainless steel chassis designed for high-traffic commercial applications.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Pro-Tip from Our Locksmiths: When ordering mortise locks, always confirm your door prep and backset before buying. Sargent uses standard 2-3/4" backset on the 8200 Series, but older installations may vary.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 4874-10B |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Oil Rubbed Bronze (US10B/613) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

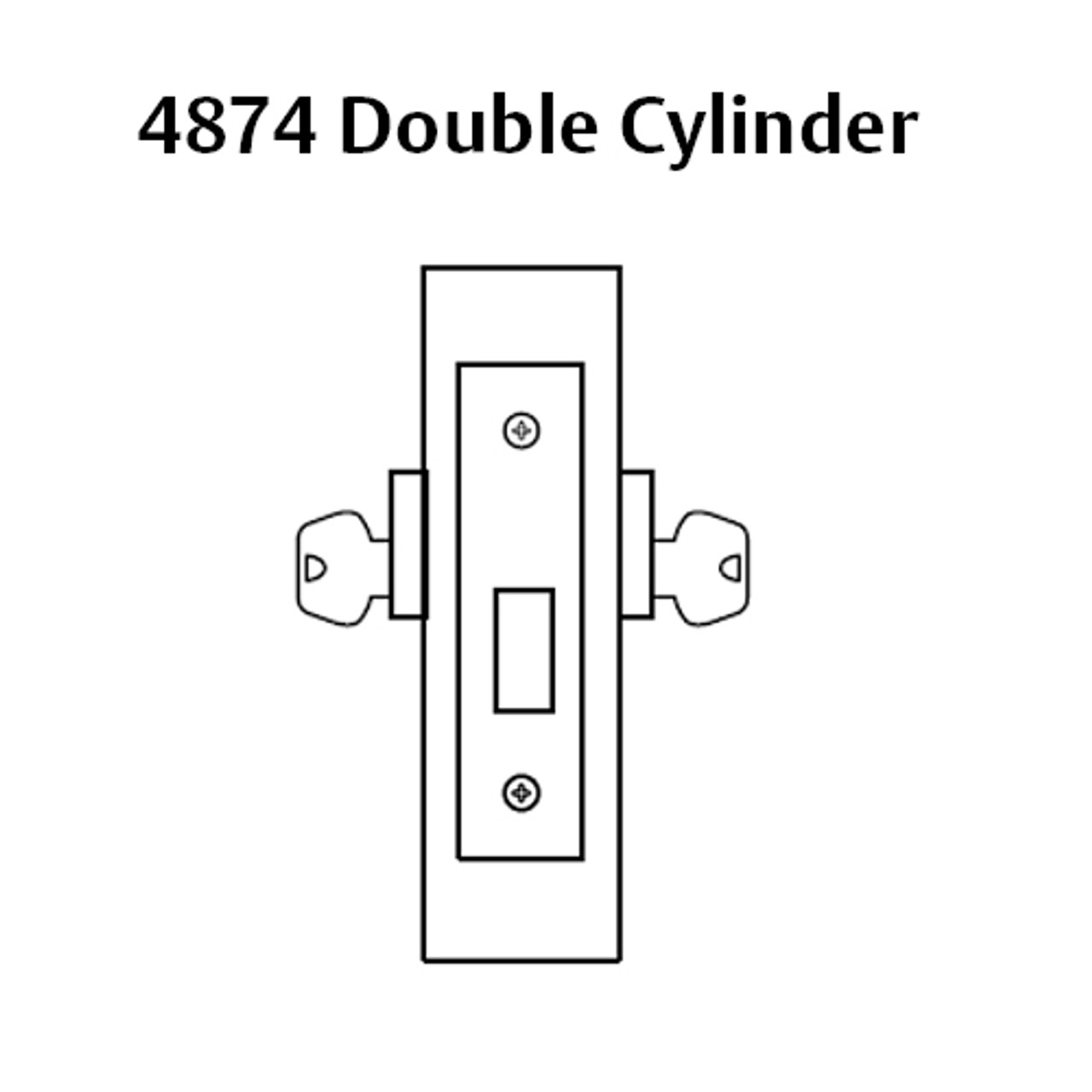

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
