Product Description
4902-02-630 Adams Rite 4902 Short Box Strike — Radius, Standard Lip
The 4902 is the short strike Adams Rite builds for its narrow stile deadlatches. It is not a lock. It is the box the latchbolt drops into on the jamb side — a short box strike with a dust box and a mounting plate, so the pocket stays clean and the bolt has something solid to land in. When the old strike is worn, bent or chewed up by years of a door being forced, this is the part that goes back in the jamb.
Adams Rite lists it as strike size 2, "Mortised (4902) 2-5/8"", in the How-to-Order tables for the 4510 and 4530 standard duty deadlatches and the 4900 heavy duty deadlatch. The 4902-02-630 is the radius standard-lip short box strike, in finish 630 satin stainless steel.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Model | 4902 | Adams Rite 4902 short box strike with dust box and mounting plate |
| Lip / Shape | 02 | Radius faceplate shape, standard lip |
| Finish | 630 | Satin Stainless Steel |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 4902-02-630 |
| Manufacturer | Adams Rite (ASSA ABLOY) |
| Product | Deadlatch strike — short box strike |
| Series | 4902 (4901 / 4902 Deadlatch Strikes) |

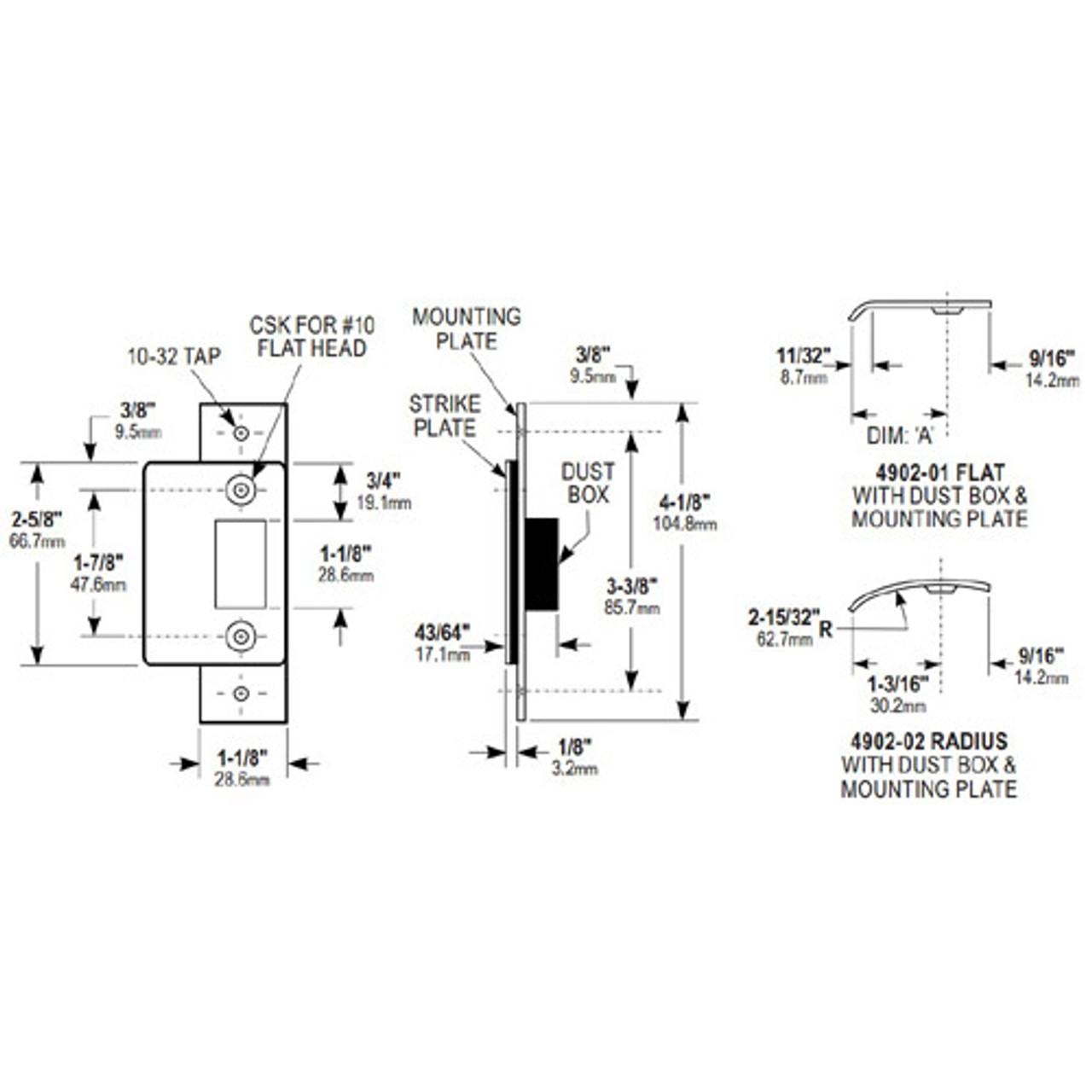

| Strike Length | 2-5/8" (strike size 2, Mortised 4902) |
| Faceplate Shape / Lip | Radius, standard lip |
| Includes | Dust box, mounting plate |
| Finish | 630 — Satin Stainless Steel |
| For Use With | Adams Rite 4510, 4530 and 4900 deadlatches (strike size 2) |
Compliance & Codes
Adams Rite publishes no separate ANSI/BHMA grade or UL listing for the strike alone. Check the deadlatch submittal if a job spec calls for one.
What's in the Box
One Adams Rite 4902 short box strike with dust box and mounting plate. The deadlatch is not included.
Pro-Installer FAQ
Q: 4901 or 4902 — which one do I need?
A: The 4901 is the flush-mount strike, mortised with a dust box, 4-5/8" long. The 4902 is the short box strike, 2-5/8" long, with a mounting plate. Match what is in the jamb now, or what the deadlatch order calls for as strike size 1 or 2.
Q: Flat, radius or extended lip?
A: Flat (-01) and radius (-02) match the deadlatch faceplate shape on a standard jamb. The extended-lip dashes (-03 to -21) are for center-hung doors on wide jambs; each dash is a set jamb width and lip dimension 'A'.
Q: Will the 119 or 121 finish match my anodized door?
A: Adams Rite lists 119 to match 335 black anodized and 121 to match 313 dark bronze anodized. 630 is satin stainless steel.
Lock Depot sells brand new Adams Rite products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
