Product Description
The Sargent 60-10XG71-LL-26D is a 10X Line cylindrical lock with Fail Secure function in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available. Grade 1 certified for heavy commercial use.
Ships prepped for a Sargent Large Format Interchangeable Core (LFIC) with a plastic disposable construction core (60- option) — the permanent LFIC core is not included. Order your LFIC core separately to match your building’s keyway; it snaps into the housing with a control key, so you can rekey later without pulling the lock.
| SKU Breakdown: 60-10XG71-LL-26D | |
| 60 | Sargent LFIC prep, ships with disposable plastic construction core |
| 10XG71 | Series and Fail Secure function |
| LL | Lever/rose design: LL |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: The 10X Line is Sargent's ANSI/BHMA A156.2 Grade 1 cylindrical lock, built for heavy duty commercial and institutional doors. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60-10XG71-LL-26D |
| Function | Fail Secure |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited (mechanical), 2-Year Limited (electronics) |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Fail Secure function for commercial access control
- Satin Chrome (US26D/626) finish
Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Questions? Contact us for free expert support.

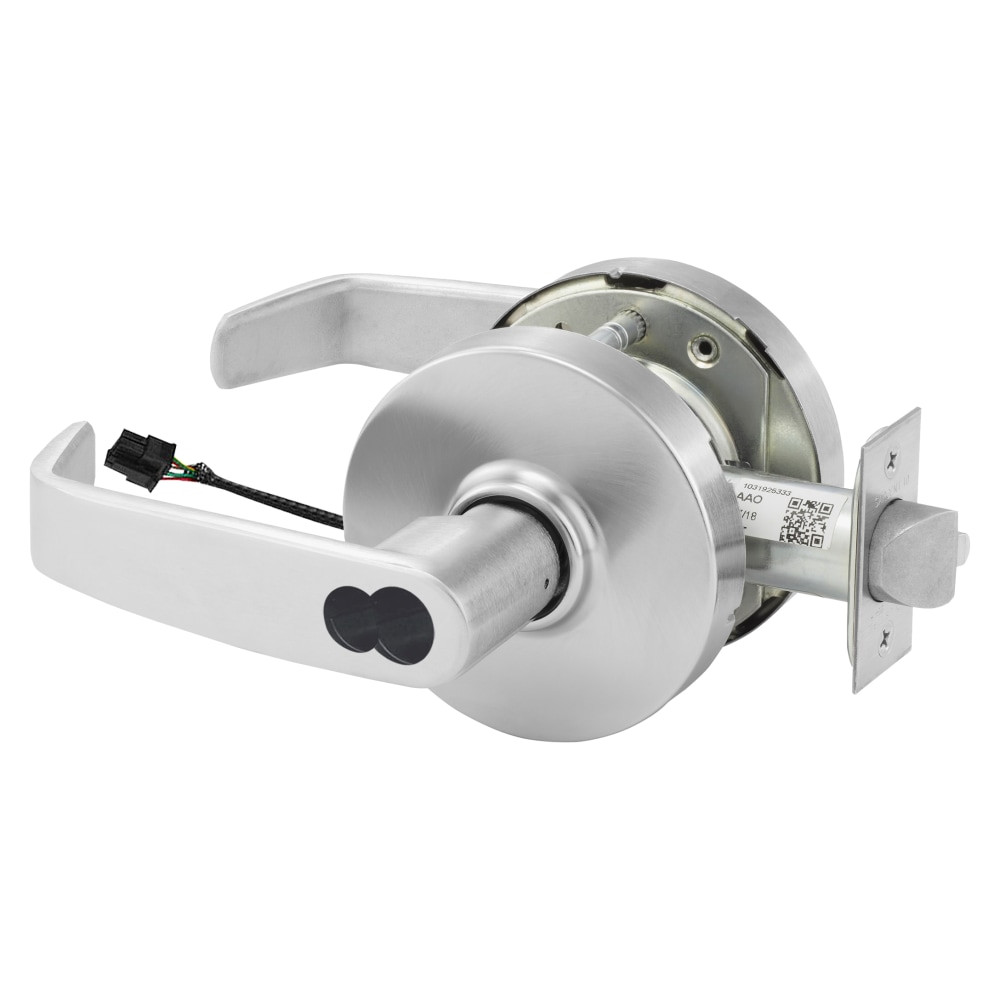

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
