Product Description
The commercial function mortise lock — built for the openings that matter most.
The Sargent 60-8226-LNA-32D-LH is a commercial function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades.
| SKU Breakdown: 60-8226-LNA-32D-LH | |
| 60 | Sargent LFIC prep, ships with disposable plastic construction core |
| 8226 | Series 8200, Function code function |
| LNA | Trim code: LNA |
| 32D | Finish: Satin Stainless |
| LH | Left Hand |
LFIC Prep — Ships With Housing and a Plastic Disposable Construction Core (60- option) — The 60- prefix means this lock ships with an LFIC housing (cylinder) instead of a standard pinned cylinder. Install the lock in the door first, then screw the LFIC housing into the lock body like any mortise cylinder. Order your permanent LFIC core separately to match your building's keyway — the core snaps into the housing with a control key. No re-pinning, no tools, swap takes 10 seconds. That's why universities and hospitals love LFIC — one lost key doesn't mean rekeying a whole building.
This one comes with LN Rose, A Lever in Satin Stainless — the 32D finish that laughs at corrosion. Coastal, pool areas, food service, anywhere moisture is a factor. Costs more than chrome but outlasts it 3-to-1 in harsh environments.
| Handing | Left Hand |
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LN Rose, A Lever — Sargent commercial trim
- Satin Stainless finish
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series

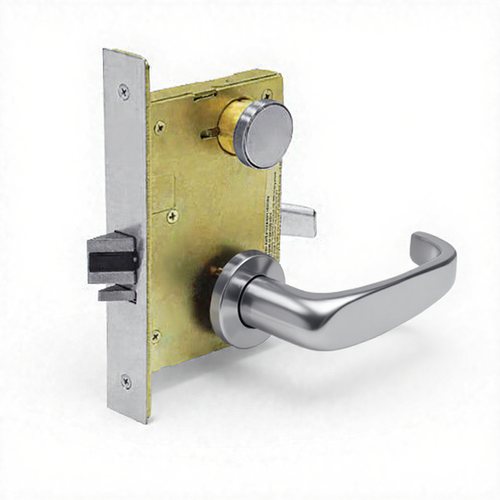

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Mortise Lock
Series 8200
Finish Satin Stainless
Trim LN Rose, A Lever
Cylinder Interchangeable Core
Mount Type Mortise
Fire Rated Fire Rated
Function Store Door
