Product Description
The Sargent 60-8243-LE1L-4 is an Apartment Corridor function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Key and thumbturn both retract & project the deadbolt. Trim outside is locked by toggle or projecting deadbolt. Trim outside is unlocked by toggle only. Key retracts both latchbolt and deadbolt, trim outside remains locked. Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked. Auxiliary deadlatch.
| SKU Breakdown: 60-8243-LE1L-4 | |
| 60 | Sargent LFIC prep, ships with disposable plastic construction core |
| 8243 | Series 8200, Apartment Corridor function |
| LE1L | Trim code: LE1L |
| 4 | Finish code: 4 |
This one comes with LE1 Escutcheon, L Lever in Satin Brass — the 04 finish making a huge comeback in commercial design. Popular on boutique hotels, upscale office buildings, and any project where the architect wants warm tones.
The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LE1 Escutcheon, L Lever — Sargent commercial trim
- Satin Brass finish
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
20+ Years in the Trade — Lock Depot started as a locksmith shop and grew into one of the largest online commercial hardware distributors in the country. Every Sargent product ships factory-sealed with the complete manufacturer warranty. Need help? (877) 365-5625 — we'll answer in locksmith, not sales talk.

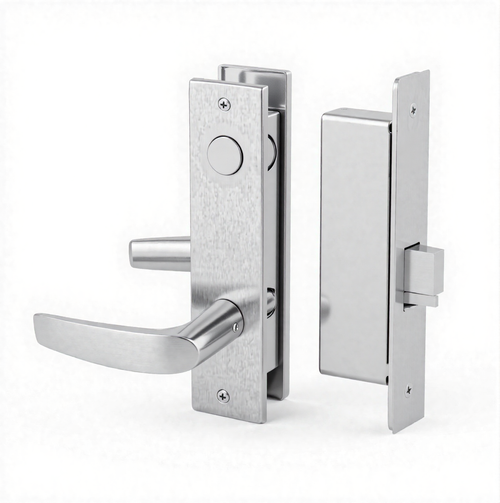

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
