Product Description
The Sargent 60-8243-WTL-32 is an Apartment Corridor function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Key and thumbturn both retract & project the deadbolt. Trim outside is locked by toggle or projecting deadbolt. Trim outside is unlocked by toggle only. Key retracts both latchbolt and deadbolt, trim outside remains locked. Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked. Auxiliary deadlatch.
| SKU Breakdown: 60-8243-WTL-32 | |
| 60 | Sargent LFIC prep, ships with disposable plastic construction core |
| 8243 | Series 8200, Apartment Corridor function |
| WTL | Trim code: WTL |
| 32 | Finish: Bright Stainless |

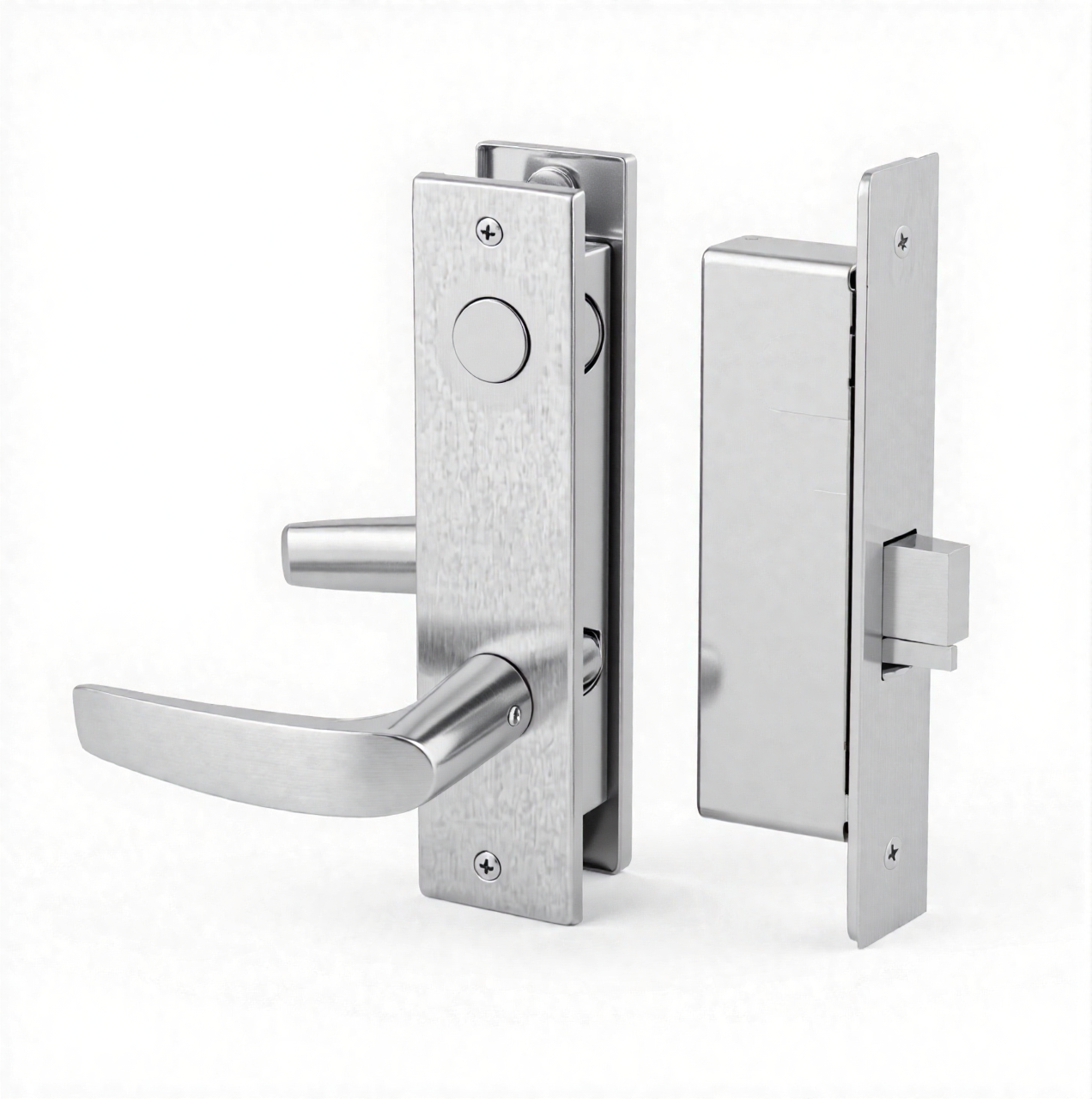

This one comes with WT Escutcheon, L Lever in Bright Stainless — mirror-polished 32 finish for high-end applications where corrosion resistance and visual impact both matter.
The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- WT Escutcheon, L Lever — Sargent commercial trim
- Bright Stainless finish
- Field reversible — works on left or right hand doors without modification
