Product Description
The Sargent 60-8273-12V-LNB-BSP is a 8200 Series Fail Secure mortise lock in Black Suede (BSP). Remains locked on power loss. Key override always available.
Ships prepped for a Sargent Large Format Interchangeable Core (LFIC) — the core is not included. Order your LFIC core separately to match your building’s keyway; it snaps into the housing with a control key, so you can rekey later without pulling the lock.
| SKU Breakdown: 60-8273-12V-LNB-BSP | |
| 60 | Electrified mortise lock (60 prefix) |
| 8273 | Series 8200, Fail Secure function |
| 12V | Voltage: 12V |
| LNB | Trim code: LNB |
| BSP | Finish: Black Suede |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60-8273-12V-LNB-BSP |
| Series | Sargent 8200 |
| Function | Fail Secure |
| Finish | Black Suede (BSP) |
| Mount Type | Mortise |
| Cylinder | LFIC Prep — Less Core (order LFIC core separately) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Secure function — Remains locked on power loss. Key override always available.
- Black Suede (BSP) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- LFIC prep, less core — order a Sargent large-format interchangeable core separately to match your keyway (drops in with a control key).
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

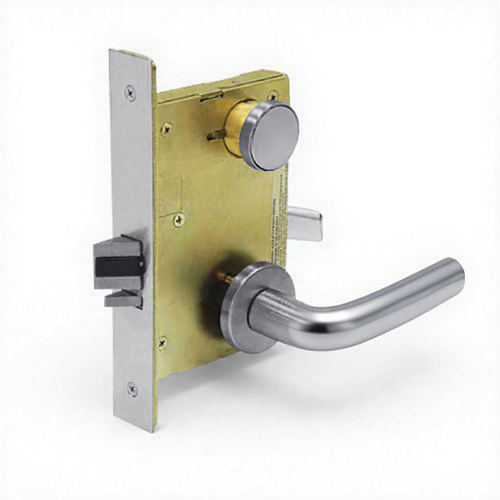

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
