Product Description

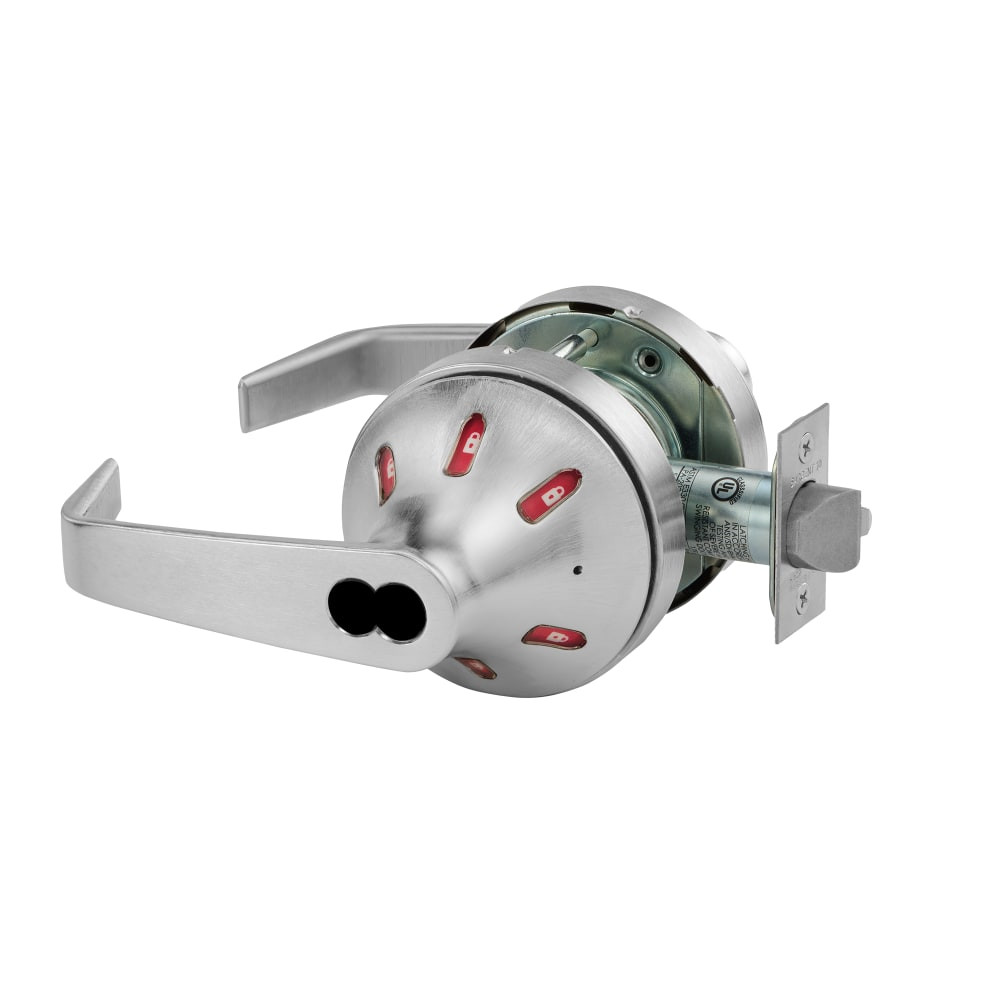

The Sargent 60-V60-10XG24-VSLL-26D is a 10X Line cylindrical lock with Entry/Office function in Satin Chrome (US26D/626). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 1 certified for heavy commercial use.
Ships prepped for a Sargent Large Format Interchangeable Core (LFIC) with a plastic disposable construction core (60- option) — the permanent LFIC core is not included. Order your LFIC core separately to match your building’s keyway; it snaps into the housing with a control key, so you can rekey later without pulling the lock.
| SKU Breakdown: 60-V60-10XG24-VSLL-26D | |
| 60 | Sargent LFIC prep, ships with disposable plastic construction core |
| V60 | Series and Entry/Office function |
| 10XG24 | Lever/rose design: 10XG24 |
| VSLL | Finish: Satin Chrome |
| 26D | Configuration modifier |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60-V60-10XG24-VSLL-26D |
| Function | Entry/Office |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Entry/Office function for commercial access control
- Satin Chrome (US26D/626) finish
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Entry/Office
Series 10X
Finish Satin Chrome
Trim L Rose, L Lever
Cylinder Interchangeable Core
Mount Type Cylindrical
