Product Description

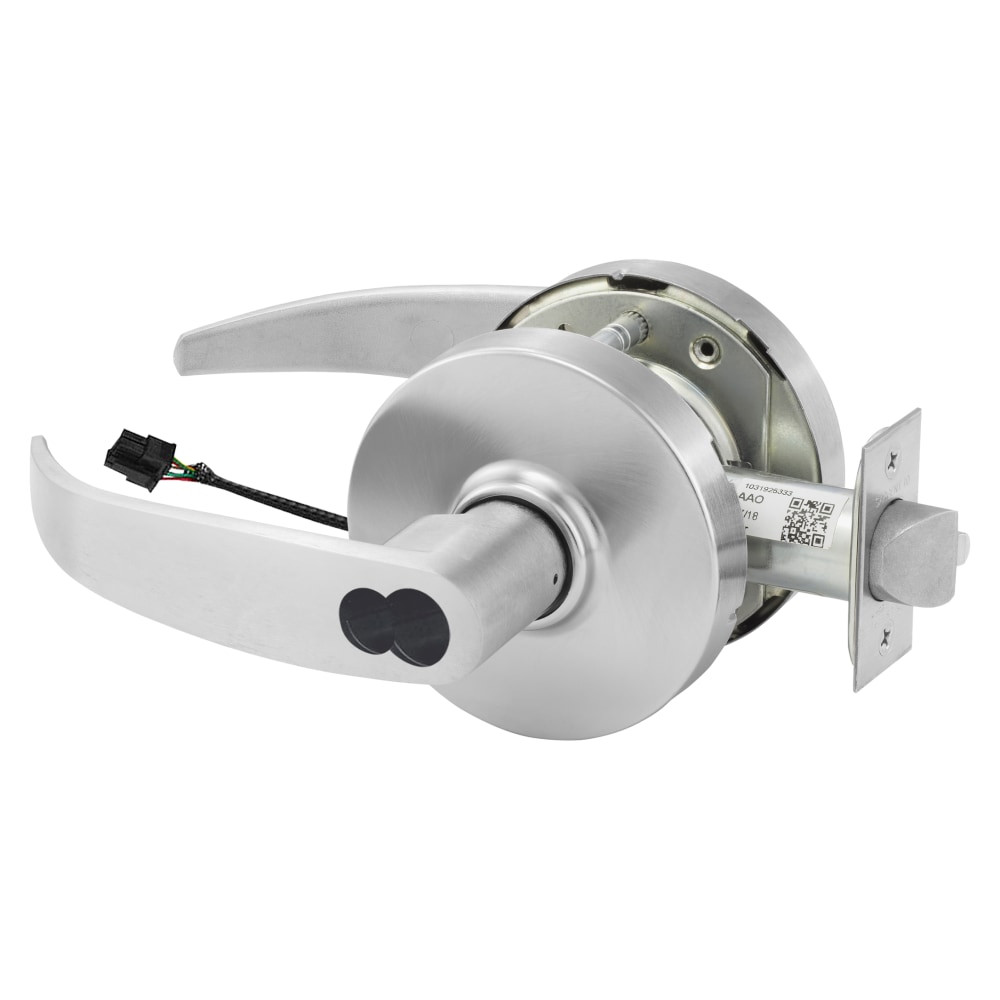

The Sargent 60RX-10XG71-LP-26D is a 10X Line cylindrical lock with Fail Secure function in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available. Grade 1 certified for heavy commercial use.
Ships prepped for a Sargent Large Format Interchangeable Core (LFIC) with a plastic disposable construction core (60- option) — the permanent LFIC core is not included. Order your LFIC core separately to match your building’s keyway; it snaps into the housing with a control key, so you can rekey later without pulling the lock.
| SKU Breakdown: 60RX-10XG71-LP-26D | |
| 60RX | Sargent LFIC prep, ships with disposable plastic construction core + request-to-exit switch (monitors inside lever) |
| 10XG71 | Series and Fail Secure function |
| LP | Lever/rose design: LP |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60RX-10XG71-LP-26D |
| Function | Fail Secure |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited (mechanical), 2-Year Limited (electronics) |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Fail Secure function for commercial access control
- Satin Chrome (US26D/626) finish
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mechanical components of cylindrical locks and a 2-year limited warranty on electronic components, covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Fail Secure
Series 10X
Finish Satin Chrome
Trim L Rose, P Lever
Cylinder Interchangeable Core
Mount Type Cylindrical
Mode Fail Secure
