Von Duprin 6222 Electric Strike — Satin Bronze
The Von Duprin 6222 is the adjustable-depth open-back strike for 1-3/4" and 2-1/4" doors. Handles thick doors that other strikes can't reach. Open-back design with heavy-duty stainless construction. Factory configured as fail secure with 12VDC operation. Fire rated UL 10C. If the door is thicker than standard 1-3/4" and you need open-back clearance, the 6222 is the only model in the line that handles both requirements.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: This is a Fail Safe strike — it unlocks on power loss for life safety egress. That's what you want on most fire-rated doors and emergency exits. If you need it to stay locked during a power outage, order the FS (Fail Secure) version instead. The Satin Bronze finish has a warm, antiqued brown tone — popular in educational and government buildings with traditional interiors.
| Brand | Von Duprin (Allegion) |
| Part Number | 6222-12VDC-US10 |
| Series | Von Duprin 6222 |
| Application | Rim Exit Devices (Hollow Metal) |
| Finish | Satin Bronze (612/US10) |
| Mode | Fail Safe |
| Voltage | 12VDC |
| Faceplate | 4-7/8" |
| Latch Throw | 3/4" |
| Fire Rating | Fire Rated — 3-Hour UL 10C Listed |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 3/4" latchbolt throw
- Fail Safe operation — unlocks on power loss for life safety egress
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Rim exit devices on hollow metal frame applications. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.

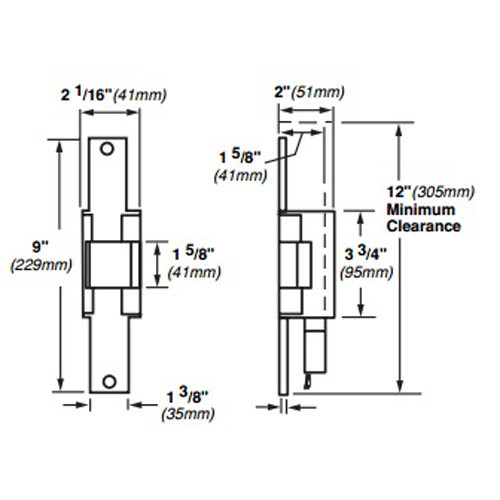

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
