Product Description
The Sargent 70-8243-LW1P-32 is an Apartment Corridor function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Key and thumbturn both retract & project the deadbolt. Trim outside is locked by toggle or projecting deadbolt. Trim outside is unlocked by toggle only. Key retracts both latchbolt and deadbolt, trim outside remains locked. Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked. Auxiliary deadlatch.
| SKU Breakdown: 70-8243-LW1P-32 | |
| 70 | SFIC prep, ships with disposable plastic construction core |
| 8243 | Configuration: 8243 |
| LW1P | Trim code: LW1P |
| 32 | Finish: Bright Stainless |
This one comes with LW1 Escutcheon, P Lever in Bright Stainless — mirror-polished 32 finish for high-end applications where corrosion resistance and visual impact both matter.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LW1 Escutcheon, P Lever — Sargent commercial trim
- Bright Stainless finish
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
Free Expert Support — Not sure which function, finish, or trim you need? Call (877) 365-5625 and talk to a real locksmith — not a call center. We've spec'd Sargent hardware on thousands of commercial jobs and we'll make sure you order the right product the first time.

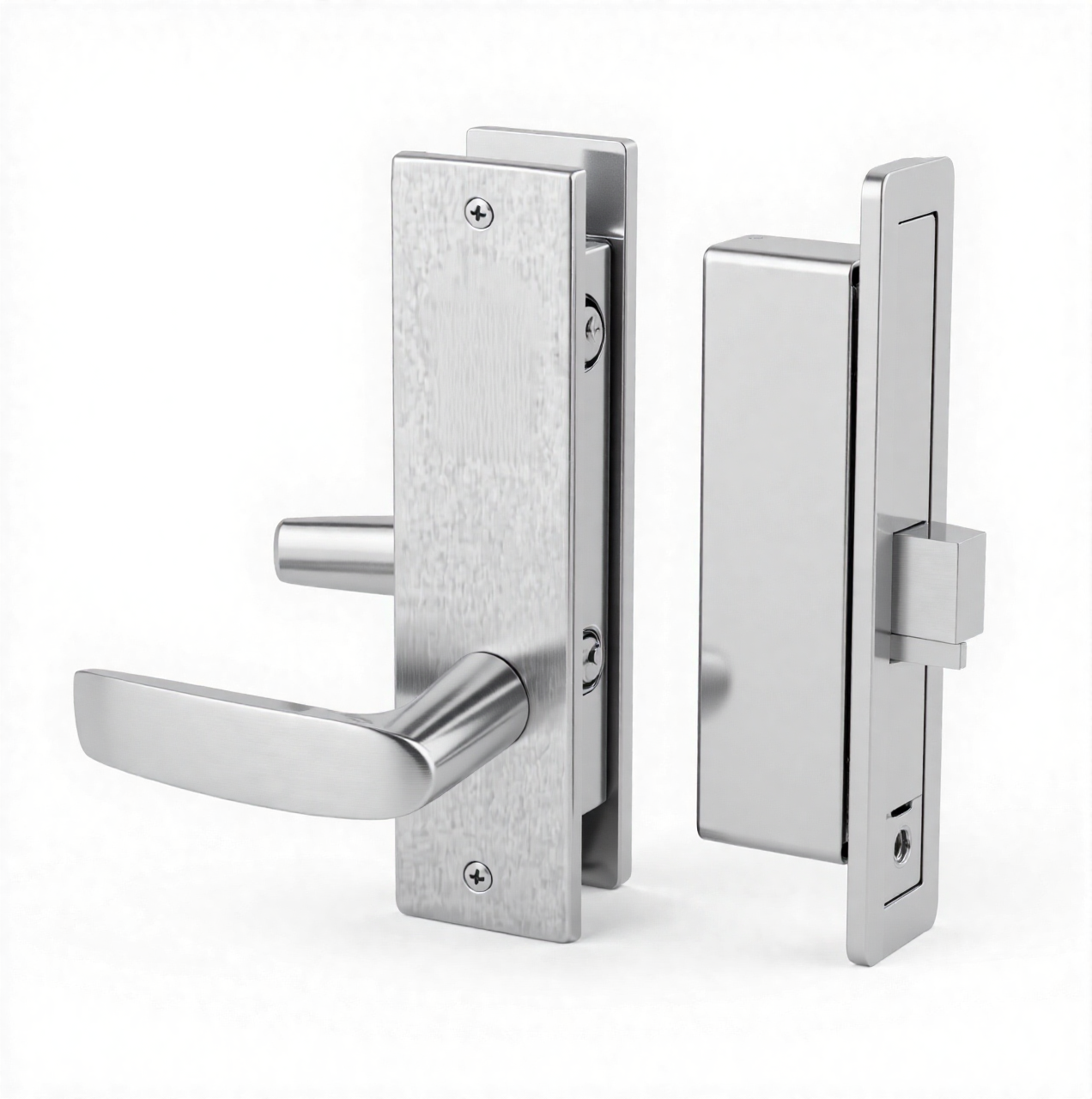

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
