Product Description
The Sargent 70-8271-24V-LNL-26D is a 8200 Series Fail Secure mortise lock in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available.
Ships prepped for a Small Format Interchangeable Core (SFIC) — the core is not included. Order your SFIC (Best-style) core separately to match your key system; it drops into the figure-8 housing with a control key for an instant rekey without removing the lock.
| SKU Breakdown: 70-8271-24V-LNL-26D | |
| 70 | Series 8200, Fail Secure function |
| 8271 | Configuration: 8271 |
| 24V | Voltage: 24V |
| LNL | Trim code: LNL |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 70-8271-24V-LNL-26D |
| Series | Sargent 8200 |
| Function | Fail Secure |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | SFIC Prep — Less Core (order SFIC core separately) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Secure function — Remains locked on power loss. Key override always available.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- SFIC prep, less core — order a small-format (Best-style) interchangeable core separately to match your key system (drops into the figure-8 housing with a control key).
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

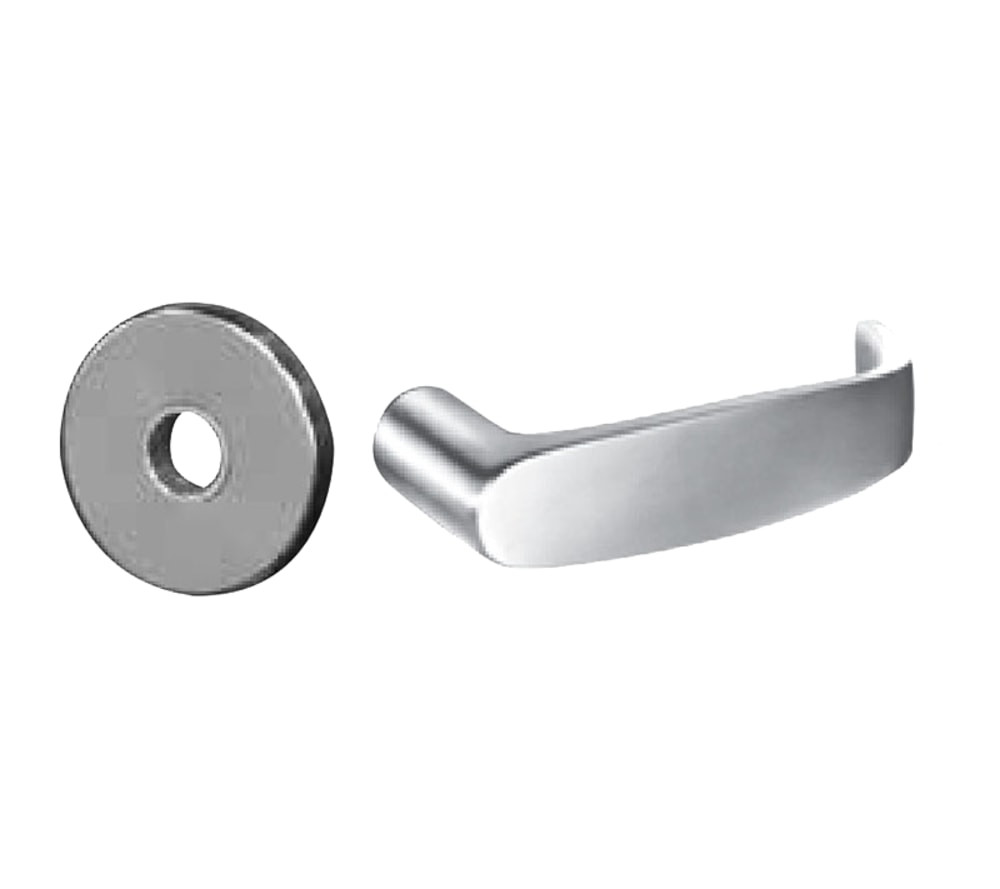

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
