Product Description
The Sargent 70-8272-24V-LNJ-26D is a 8200 Series Fail Safe mortise lock in Satin Chrome (US26D/626). Unlocks on power loss for life safety egress.
Ships prepped for a Small Format Interchangeable Core (SFIC) — the core is not included. Order your SFIC (Best-style) core separately to match your key system; it drops into the figure-8 housing with a control key for an instant rekey without removing the lock.
| SKU Breakdown: 70-8272-24V-LNJ-26D | |
| 70 | Series 8200, Fail Safe function |
| 8272 | Configuration: 8272 |
| 24V | Voltage: 24V |
| LNJ | Trim code: LNJ |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 70-8272-24V-LNJ-26D |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | SFIC Prep — Less Core (order SFIC core separately) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- SFIC prep, less core — order a small-format (Best-style) interchangeable core separately to match your key system (drops into the figure-8 housing with a control key).
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

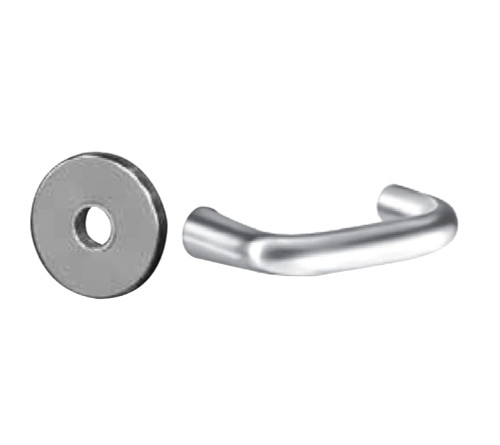

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
