Product Description

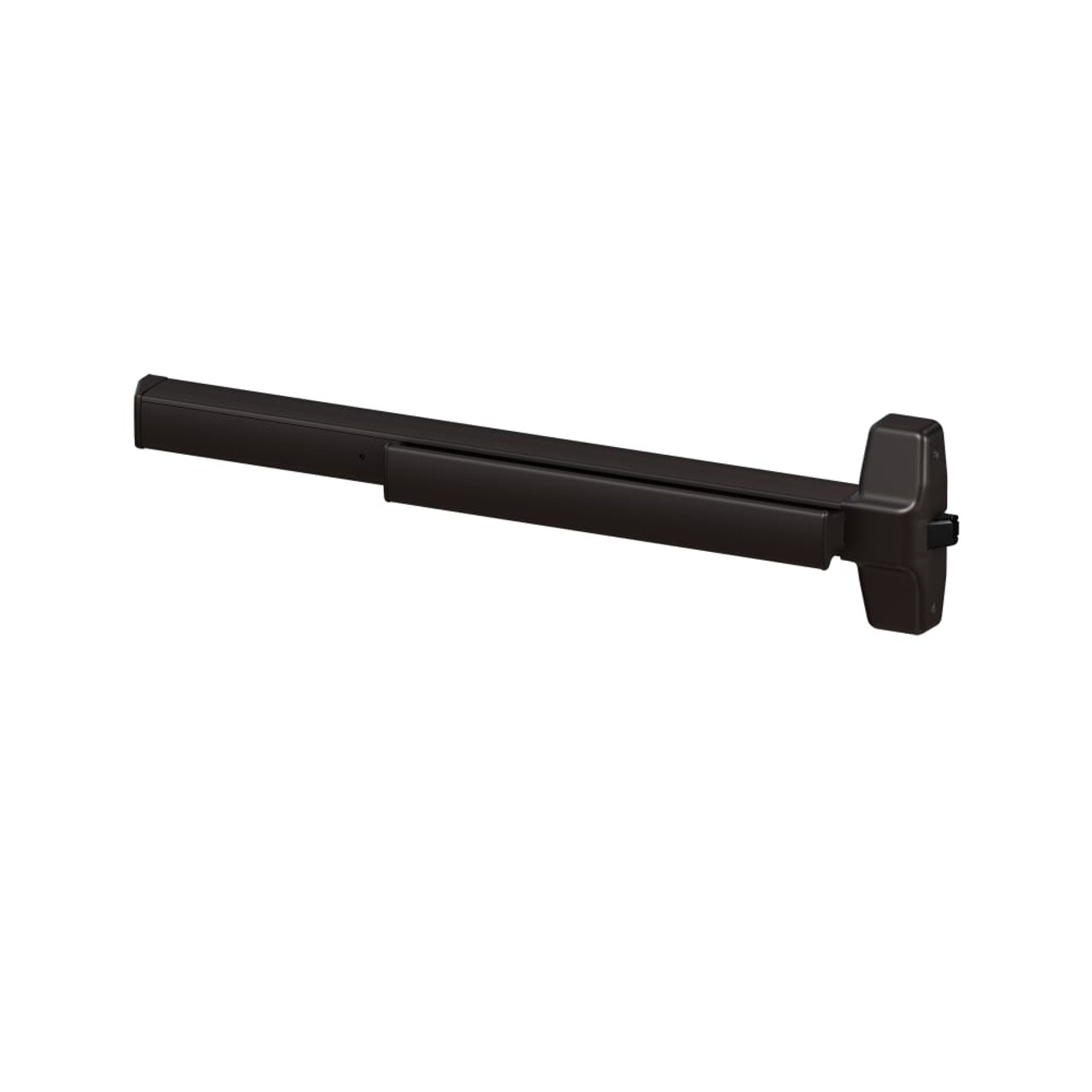

78NL-OP-F-413-4 Von Duprin Fire Rated 78 Series Night Latch Rim Exit Device in Duranodic Dark Bronze
The Von Duprin 78NL-OP-F-413-4 is a crossbar rim exit device for storefront and aluminum doors. Night Latch with Optional Pull — outside lever locks and unlocks by key with optional pull handle. Inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 78 Series crossbar provides a wide activation zone across the full width of the door — maximum push area for emergency egress. Available in 4-foot width. Non-handed design works for both LHR and RHR door swings. UL listed for fire exit hardware — no mechanical dogging on fire-rated models. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: Strike alignment is the number one callback on storefront rim devices. The 78 uses the same strike body as the 22 Series — make sure the frame strike pocket is deep enough. On older aluminum frames, you may need a surface-applied strike if the pocket is too shallow.
| Specifications | |
|---|---|
| Part Number | 78NL-OP-F-413-4 |
| Function | NL-OP - Night Latch Optional Pull |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Door Width | 4-Foot (48") |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Crossbar design — wide activation zone across full door width
- Non-handed — same device fits LHR and RHR door swings
- UL listed for fire exit hardware — no mechanical dogging per code
- Dark Bronze (313/313) finish
Works With: For pairs of doors, see the 7827 Surface Vertical Rod or 7847 Concealed Vertical Rod. For narrow stile doors, see the 55 Series.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
