Product Description
The Sargent 8239-LNA-10-RH is a 8200 Series Classroom Security Intruder Deadbolt mortise lock in Satin Bronze (US10/612). A key from either side — outside or inside — projects or retracts a 1-inch throw deadbolt, and projecting that deadbolt is the only thing that locks the outside lever. Sargent’s published function text states: “Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim.” ANSI F33 (per Sargent’s published catalog).
Includes a standard conventional mortise cylinder (keyed). Need it without a cylinder? Order the LC- less-cylinder variant of this part instead.
| SKU Breakdown: 8239-LNA-10-RH | |
| 8239 | Series 8200, Classroom function |
| LNA | Trim code: LNA |
| 10 | Finish: Satin Bronze |
| RH | Right Hand |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8239-LNA-10-RH |
| Series | Sargent 8200 |
| Function | Classroom Security Intruder Deadbolt (ANSI F33) |
| Finish | Satin Bronze (US10/612) |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Classroom Security Intruder Deadbolt (ANSI F33) — a key from either side throws or retracts the deadbolt, which is the only thing that locks the outside lever. Sargent: “Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim.”
- Satin Bronze (US10/612) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Includes a standard conventional mortise cylinder (keyed) — order the LC- variant if you need it less cylinder.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

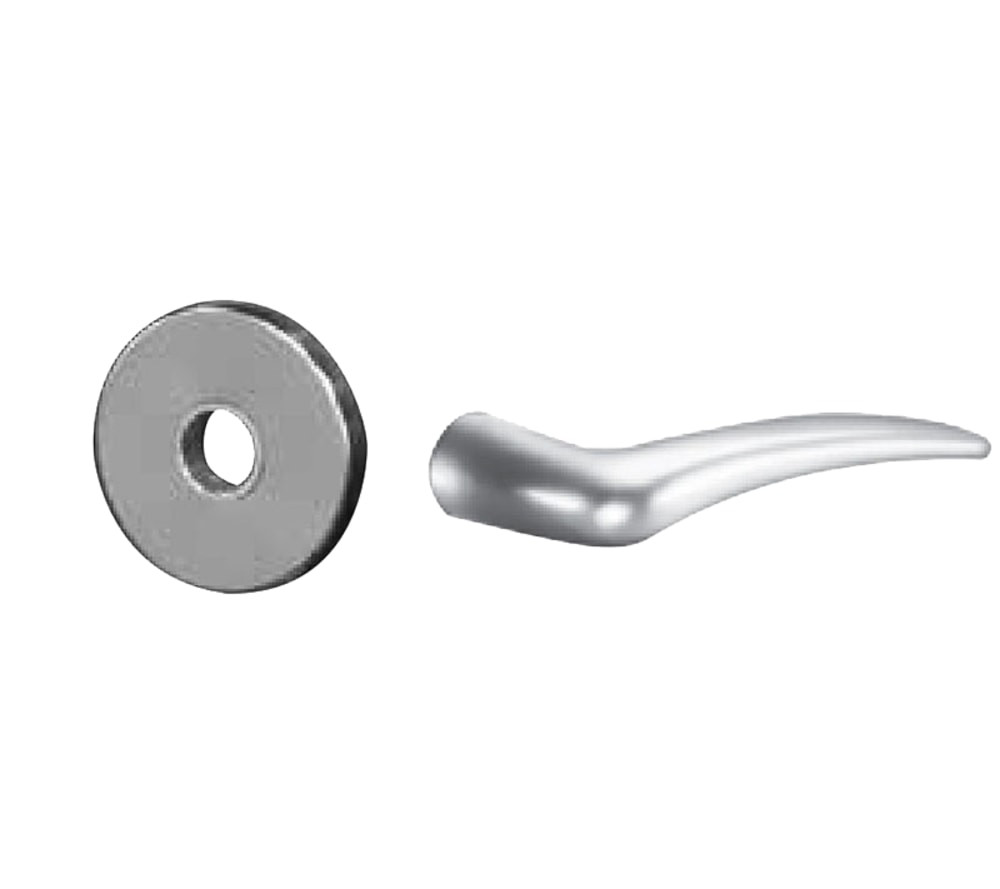

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
