Product Description
The Sargent 8239-LNE-26D is a 8200 Series Classroom Security Intruder Deadbolt mortise lock in Satin Chrome (US26D/626). A key from either side — outside or inside — projects or retracts a 1-inch throw deadbolt, and projecting that deadbolt is the only thing that locks the outside lever. Sargent’s published function text states: “Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim.” ANSI F33 (per Sargent’s published catalog).
Includes a standard conventional mortise cylinder (keyed). Need it without a cylinder? Order the LC- less-cylinder variant of this part instead.
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8239-LNE-26D |
| Series | Sargent 8200 |
| Function | Classroom Security Intruder Deadbolt (ANSI F33) |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Classroom Security Intruder Deadbolt (ANSI F33) — a key from either side throws or retracts the deadbolt, which is the only thing that locks the outside lever. Sargent: “Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim.”
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Includes a standard conventional mortise cylinder (keyed) — order the LC- variant if you need it less cylinder.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

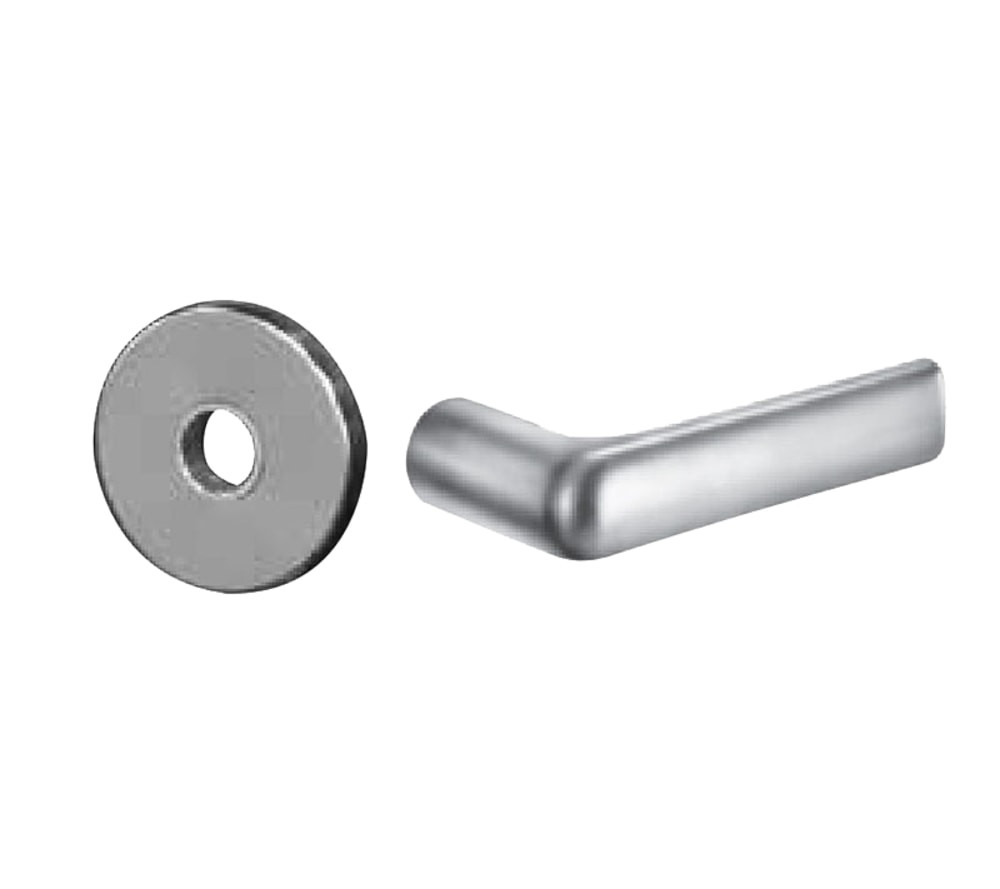

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
