Product Description
The Sargent 8239-LNF-3 is a 8200 Series Classroom Security Intruder Deadbolt mortise lock in Bright Brass. A key from either side — outside or inside — projects or retracts a 1-inch throw deadbolt, and projecting that deadbolt is the only thing that locks the outside lever. Sargent’s published function text states: “Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim.” ANSI F33 (per Sargent’s published catalog).
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8239-LNF-3 |
| Series | Sargent 8200 |
| Function | Classroom Security Intruder Deadbolt (ANSI F33) |
| Finish | Bright Brass |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Classroom Security Intruder Deadbolt (ANSI F33) — a key from either side throws or retracts the deadbolt, which is the only thing that locks the outside lever. Sargent: “Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim.”
- Bright Brass finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

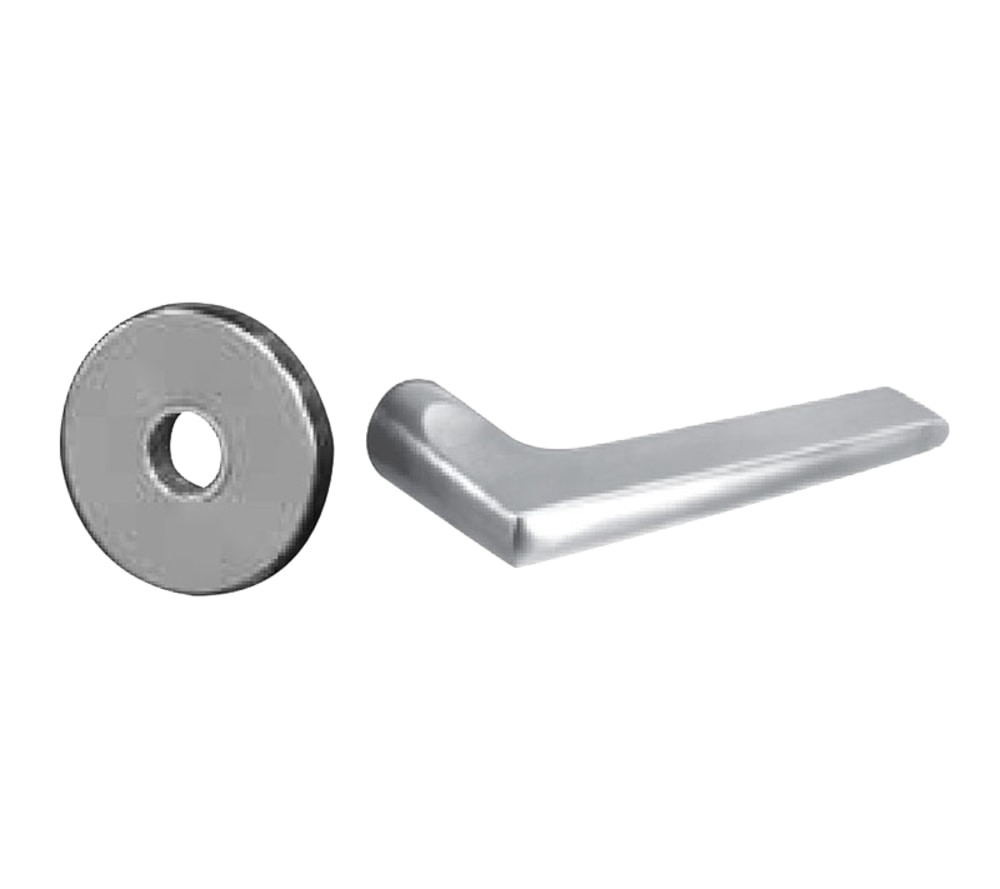

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
