Product Description
The Sargent 8243-LNA-3-RH is a 8200 Series Apartment Corridor mortise lock in Bright Brass.
Includes a standard conventional mortise cylinder (keyed). Need it without a cylinder? Order the LC- less-cylinder variant of this part instead.
| SKU Breakdown: 8243-LNA-3-RH | |
| 8243 | Series 8200, Apartment Corridor function |
| LNA | Trim code: LNA |
| 3 | Finish code: 3 |
| RH | Right Hand |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8243-LNA-3-RH |
| Series | Sargent 8200 |
| Function | Apartment Corridor |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Apartment Corridor function — ANSI F20
- Key and thumbturn both retract & project the deadbolt
- Trim outside is locked by toggle or projecting deadbolt
- Trim outside is unlocked by toggle only
- Key retracts both latchbolt and deadbolt, trim outside remains locked
- Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked
- Auxiliary deadlatch
- finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Includes a standard conventional mortise cylinder (keyed) — order the LC- variant if you need it less cylinder.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

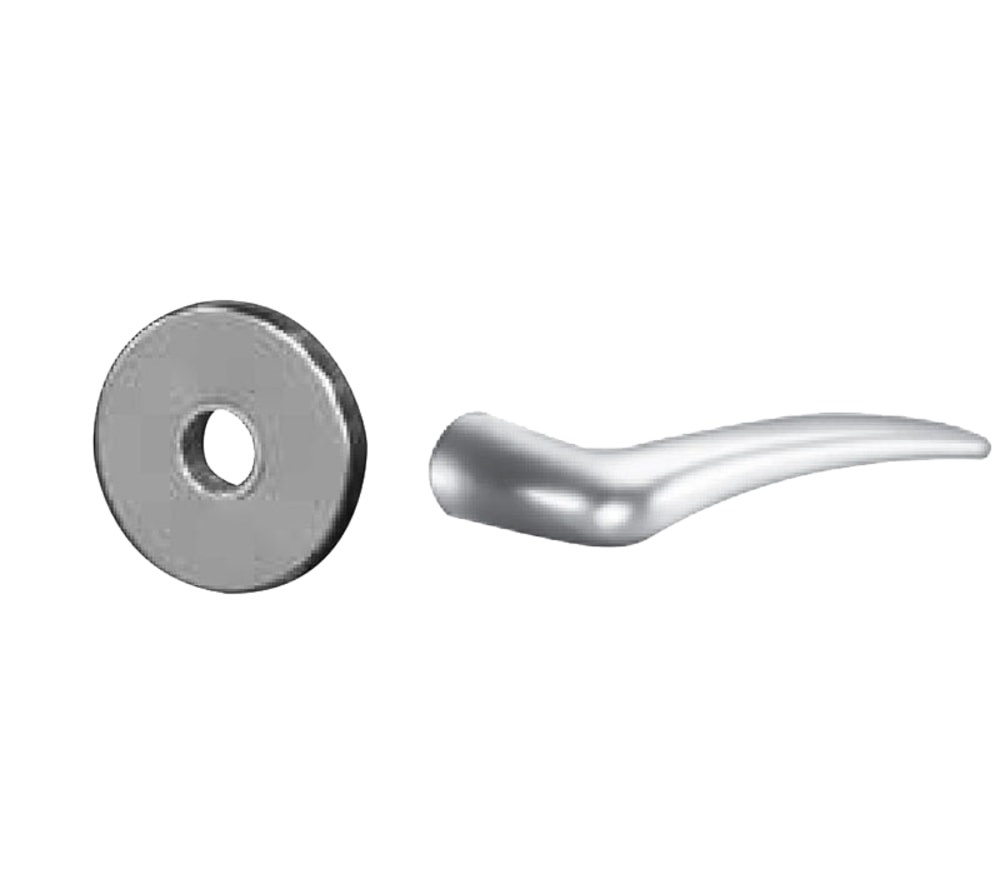

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
