Product Description

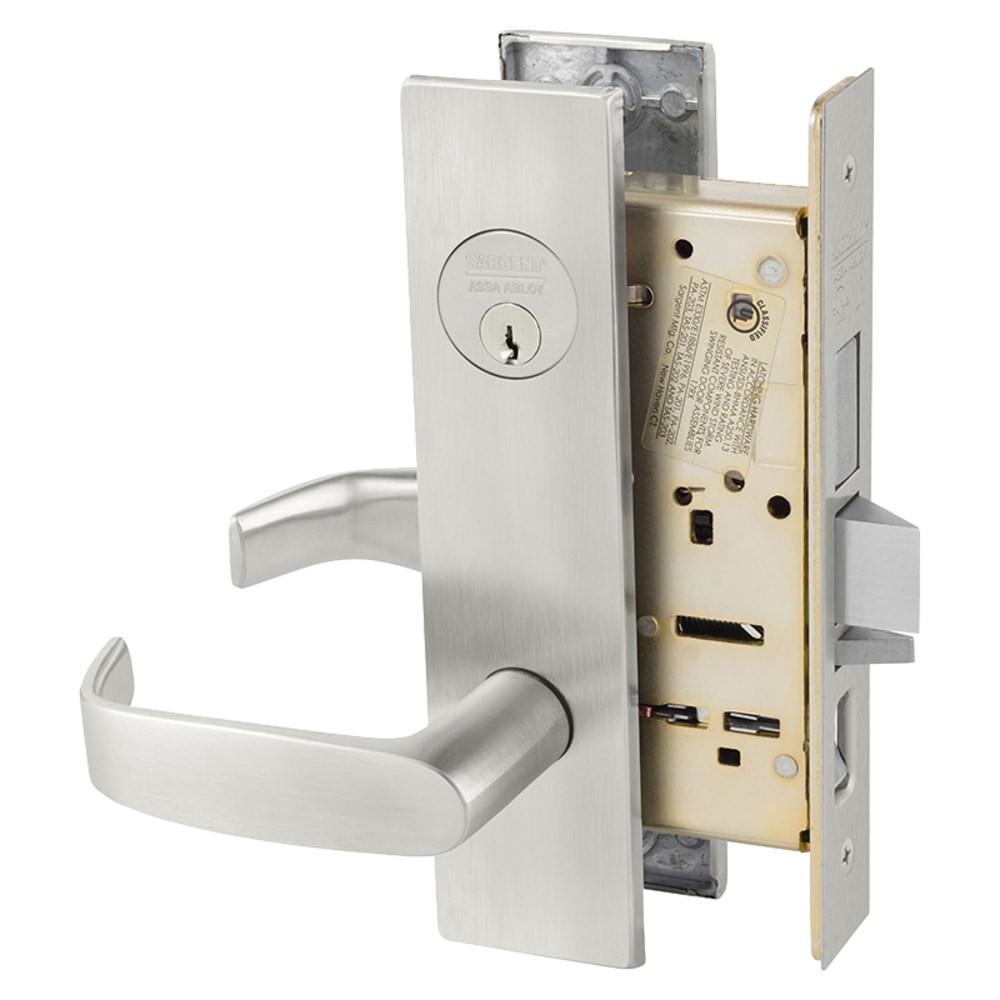

The Sargent 8243-LW1L-32D is a 8200 Series Apartment Corridor mortise lock in Satin Stainless (US32D/630).
Includes a standard conventional mortise cylinder (keyed). Need it without a cylinder? Order the LC- less-cylinder variant of this part instead.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8243-LW1L-32D |
| Series | Sargent 8200 |
| Function | Apartment Corridor |
| Finish | Satin Stainless (US32D/630) |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Apartment Corridor function — ANSI F20
- Key and thumbturn both retract & project the deadbolt
- Trim outside is locked by toggle or projecting deadbolt
- Trim outside is unlocked by toggle only
- Key retracts both latchbolt and deadbolt, trim outside remains locked
- Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked
- Auxiliary deadlatch
- Satin Stainless (US32D/630) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Includes a standard conventional mortise cylinder (keyed) — order the LC- variant if you need it less cylinder.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

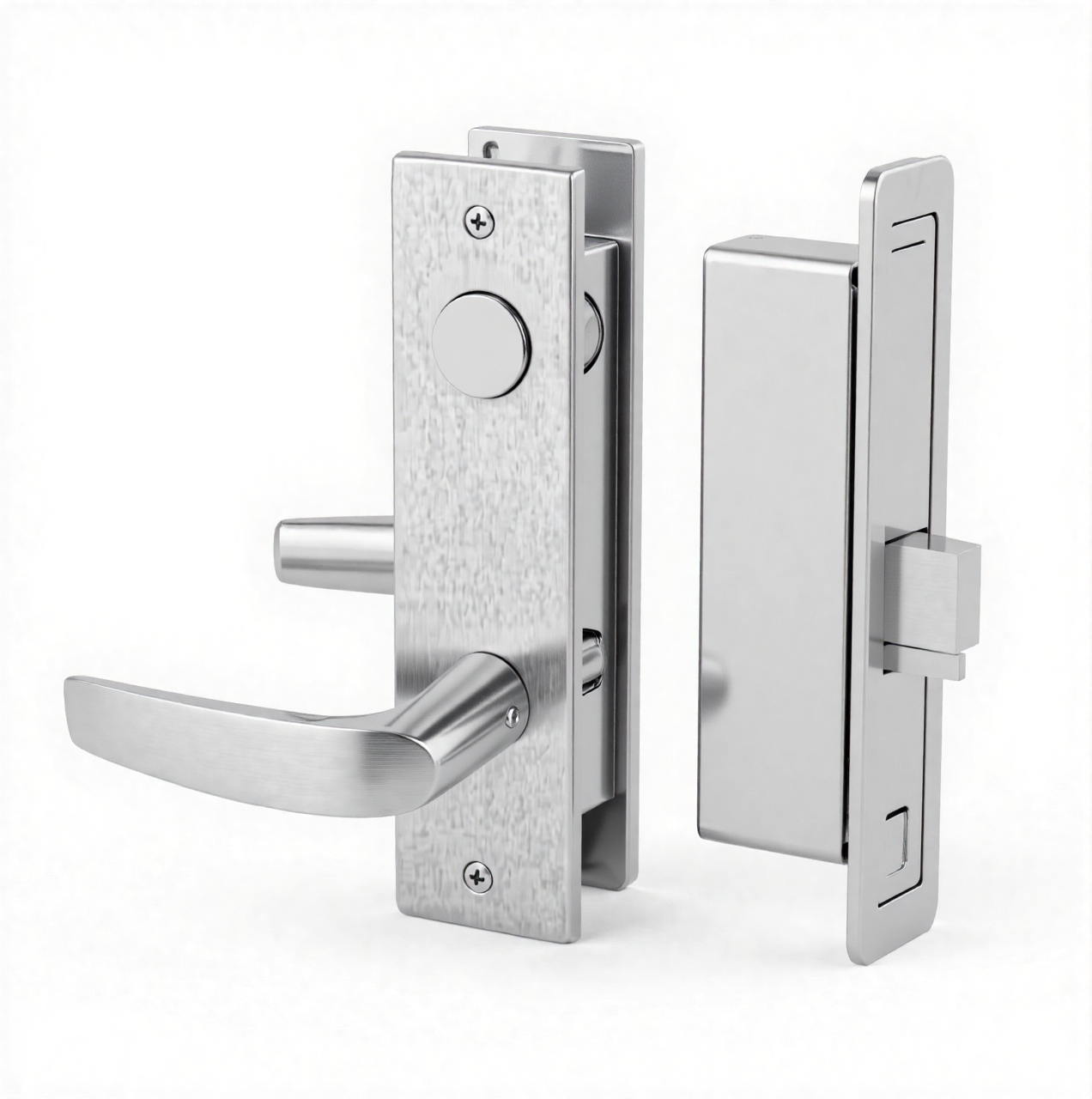

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Apartment
Series 8200
Finish Satin Stainless
Trim LW1 Escutcheon, L Lever
Cylinder Standard Cylinder
Mount Type Mortise
Fire Rated Fire Rated
