Product Description

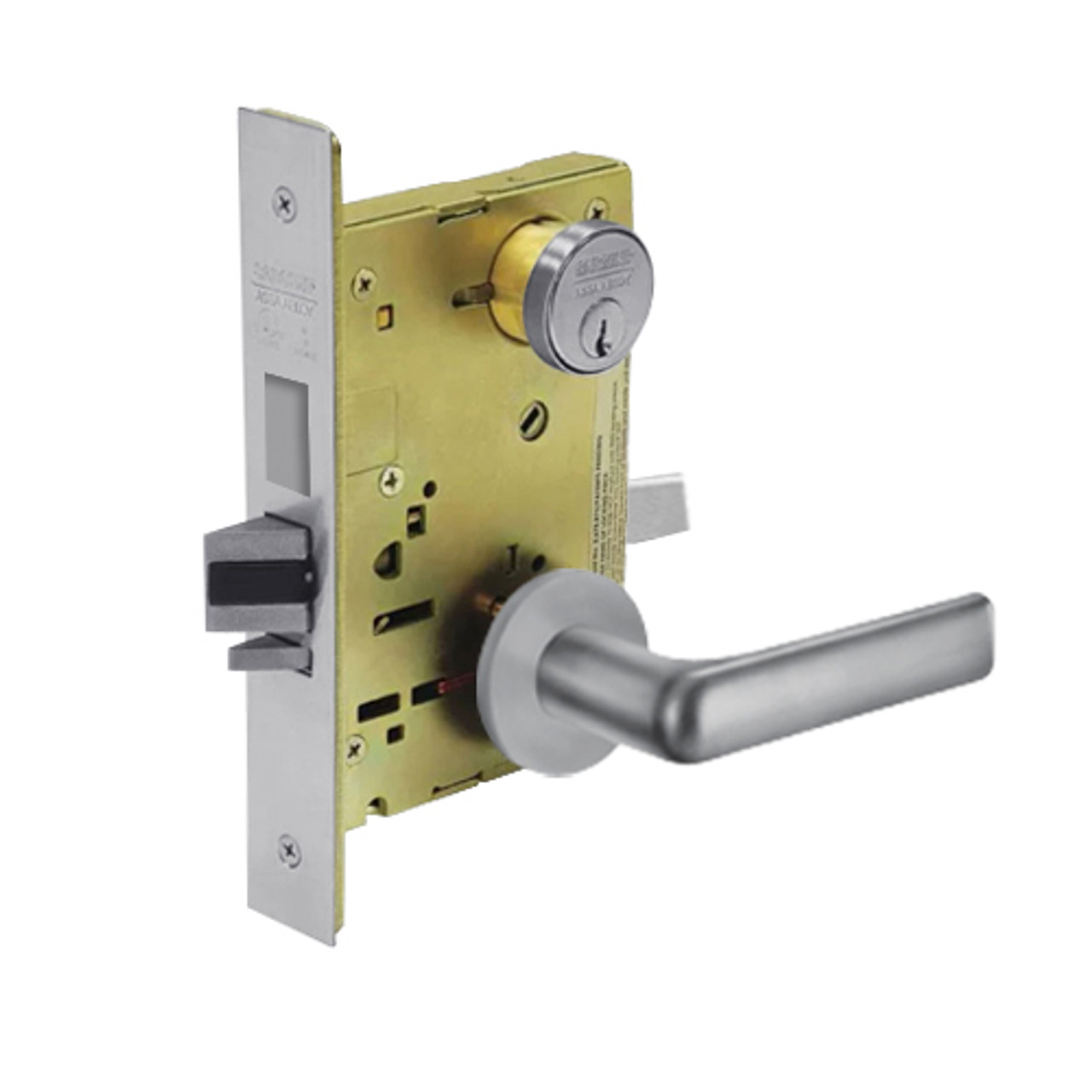

The Sargent 8252-LNE-26D is a 8200 Series Institution mortise lock in Satin Chrome (US26D/626). Both levers locked and unlocked by key only. No thumbturn or push-button.
Includes 2 standard conventional mortise cylinders (keyed). Need it without cylinders? Order the LC- less-cylinder variant of this part instead.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8252-LNE-26D |
| Series | Sargent 8200 |
| Function | Institution |
| Trim / Lever | LNE Lever Trim |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Institution function — Both levers locked and unlocked by key only. No thumbturn or push-button.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Includes 2 standard conventional mortise cylinders (keyed) — order the LC- variant if you need it less cylinder.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Institution
Series 8200
Finish Satin Chrome
Trim Lever
Mount Type Mortise
