Product Description

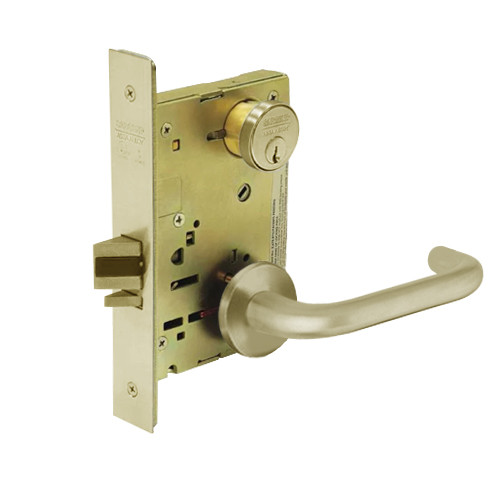

The Sargent 8267-LNJ-04 is a 8200 Series Institutional Privacy mortise lock in Satin Brass (US4/606). Thumbturn inside locks and unlocks the outside lever. Key outside retracts the latchbolt, overriding the thumbturn. Key does not lock the outside lever, only unlocks it. Inside lever always retracts the latchbolt. Outside lever unlocks when the door closes or the inside lever is used.
Includes a standard conventional mortise cylinder (keyed). Need it without a cylinder? Order the LC- less-cylinder variant of this part instead.
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8267-LNJ-04 |
| Series | Sargent 8200 |
| Function | Institutional Privacy |
| Trim / Lever | LNJ Lever Trim |
| Finish | Satin Brass (US4/606) |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Institutional Privacy function — thumbturn inside locks the outside lever; key outside overrides it; inside lever always opens.
- Satin Brass (US4/606) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Includes a standard conventional mortise cylinder (keyed) — order the LC- variant if you need it less cylinder.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
