Product Description
8827TPNL-F-US26 Von Duprin 8827 Series with 880TP Thumbpiece Night Latch Fire Rated Surface Vertical Rod Device in Bright Chrome
The Von Duprin 8827TPNL-F-US26 is a narrow stile surface vertical rod exit device that latches at the header and threshold for pairs of doors. Thumbpiece Night Latch — outside thumbpiece locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 8827 uses surface-mounted rods for top-and-bottom latching on narrow stile doors. Standard choice for pairs of aluminum storefront doors where both leaves need to be active. This is a handed device — verify LHR or RHR before ordering. UL listed for fire exit hardware — no mechanical dogging on fire-rated models. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: When pairing 8827 devices on double doors, the inactive leaf needs a flush bolt or matching device. If both doors are fire-rated, you also need a coordinator — order that separately. Fire-rated 8827-F models have no dogging per code.
| Specifications | |
|---|---|
| Part Number | 8827TPNL-F-US26 |
| Function | TPNL - Thumbpiece Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Minimum Stile Width | 2" (51mm) |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Narrow stile pushpad design — fits door stiles as narrow as 2 inches
- Surface vertical rod latching — secures at header and threshold for pairs of doors
- UL listed for fire exit hardware — no mechanical dogging per code
- Handed device — factory-set for LHR or RHR
- Bright Chrome (US26/625) finish
Works With: For single doors, see the 88 Series Rim. For concealed rods, see the 8847 CVR. Order coordinator separately for pairs of fire-rated doors.

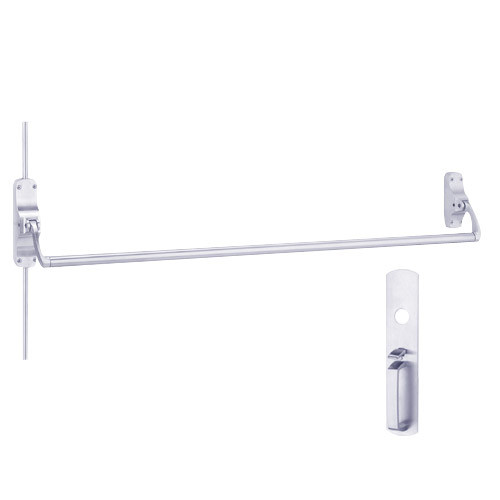

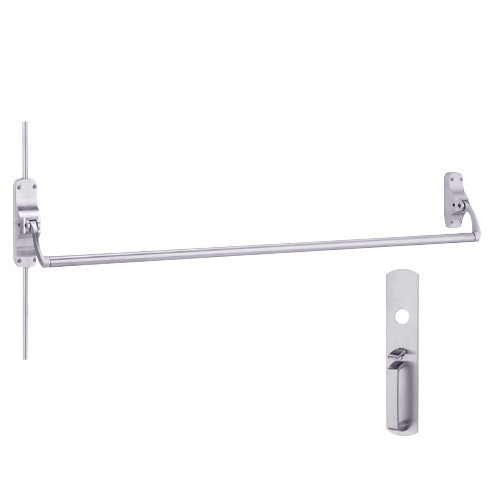

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
