Product Description

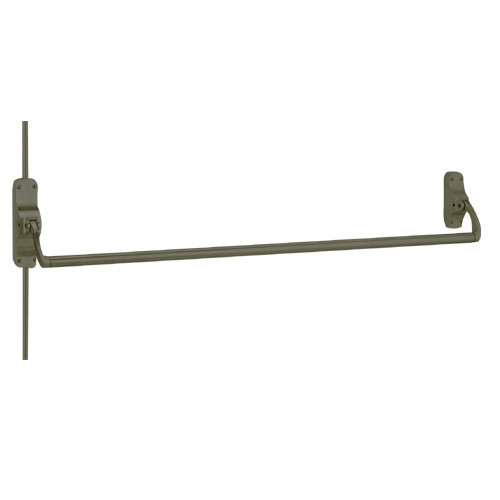

8847EO-F-US10B-LHR Von Duprin 8847 Series Exit Only Fire Rated Concealed Vertical Rod Device in Oil Rubbed Bronze
The Von Duprin 8847EO-F-US10B-LHR is a narrow stile concealed vertical rod exit device that hides the rods inside the door stile for a clean, unobstructed look. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
The 8847 provides top-and-bottom latching with concealed rods — nothing visible on the door face. The cleanest option for pairs of narrow stile glass doors. This is a handed device — verify LHR or RHR before ordering. UL listed for fire exit hardware — no mechanical dogging on fire-rated models. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: Fire-rated 8847-F models are the most common spec for pairs of narrow stile fire-rated glass doors. They're only available in Exit Only function and are always handed. Every 8847-F needs proper strike alignment at both the header and threshold.
| Specifications | |
|---|---|
| Part Number | 8847EO-F-US10B-LHR |
| Function | EO - Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Handing | Left Hand Reverse (LHR) |
| Minimum Stile Width | 2" (51mm) |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Not Included — order separately |
| Warranty | 5-Year Mechanical |
- Narrow stile pushpad design — fits door stiles as narrow as 2 inches
- Concealed vertical rods hidden inside door stile for clean appearance
- UL listed for fire exit hardware — no mechanical dogging per code
- Handed device — factory-set for LHR or RHR
- Oil Rubbed Bronze (US10B/613) finish
Works With: For single doors, see the 88 Series Rim. For surface-mounted rods, see the 8827 SVR. For mortise-grade strength, see the 8875 Mortise.
