Product Description
Rim exit devices are the simplest and most common configuration — the latch engages the strike at the edge of the door. One device, one strike, one installation.

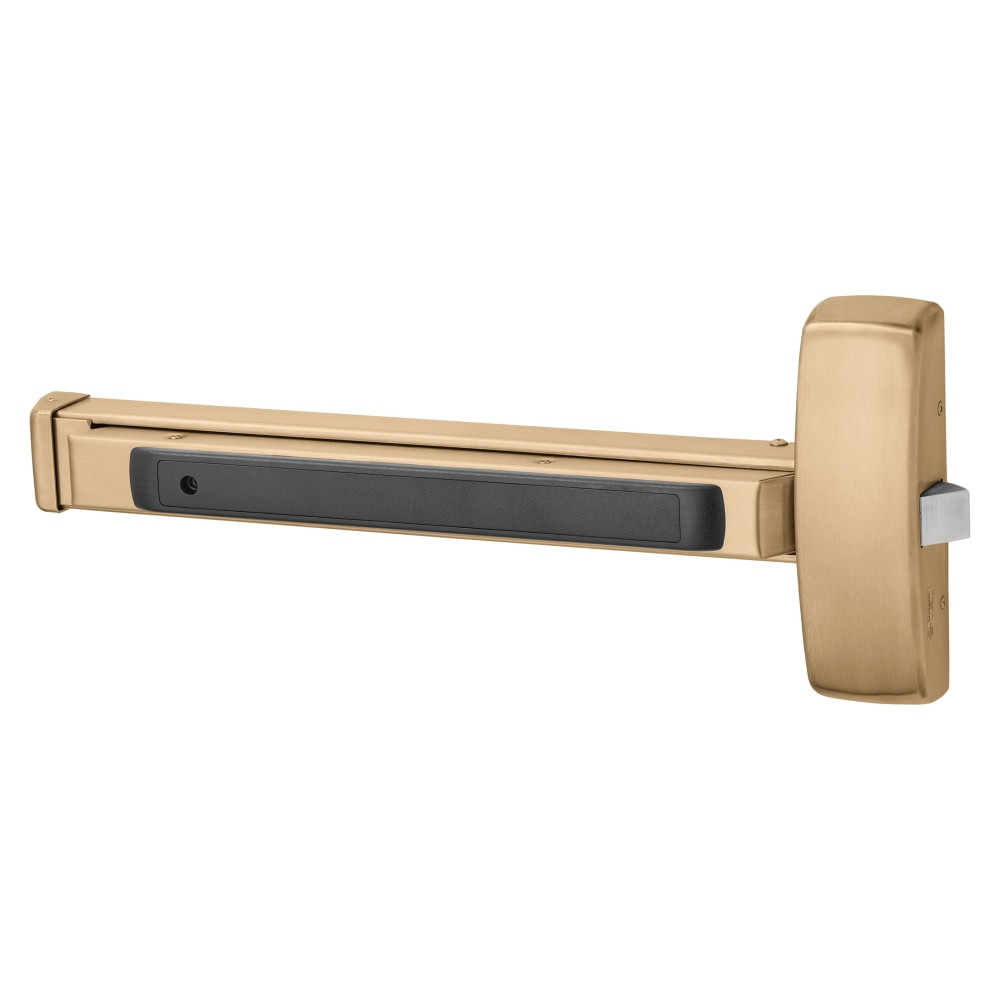

The Sargent 8863E-RHR-10 is a Grade 1 rim exit device from the 80 Series for 32" openings with Classroom function.
This device is Right Hand Reverse. Exit devices are HANDED and cannot be reversed in the field. Stand outside the door facing it: hinges on the left = Left Hand, hinges on the right = Right Hand. If the door swings toward you, add "Reverse." Verify your handing before ordering.
Pro-Tip from Our Locksmiths: The most expensive exit device mistake we see? Ordering concealed vertical rod for a door that's not prepped for it. CVR devices require internal routing channels in the door — you can't retrofit a standard hollow metal door. If the door isn't prepped, go surface vertical rod instead.
| Handing | Right Hand Reverse |
| Certification | ANSI A156.3, BHMA Grade 1, UL 10C |
| Warranty | 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial exit device rating
- Satin Bronze finish
Related Products:
- Browse all Sargent Exit Devices — Rim, surface vertical rod, and concealed vertical rod
Why Buy From Lock Depot? — We're locksmiths, not just an online store. Every order is reviewed by someone who knows the difference between Fail Safe and Fail Secure, who can tell you which trim fits your prep, and who'll pick up the phone at (877) 365-5625 if something doesn't look right. Full manufacturer warranty.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 5-year limited warranty on exit devices covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Exit Device - Rim
Function Classroom
Series 80
Finish Satin Bronze
Mount Type Rim
