Product Description
8K47A4DS3626 Best 8K Series Dormitory/Storeroom Heavy Duty Cylindrical Knob Locks with Round Style in Satin Chrome Finish
The Best 8K47A4DS3626 Series cylindrical locks offer quick, economical re-keying capabilities with the best original interchangeable core. Long lasting quality is evident in the design and composition of the Best 8K Series locks. The BEST 8K Series is constructed of steel or brass to ensure the overall strength and durability of the lock. The Best 8K series are listed by the BHMA for A156.2, Series 4000, Grade 1.

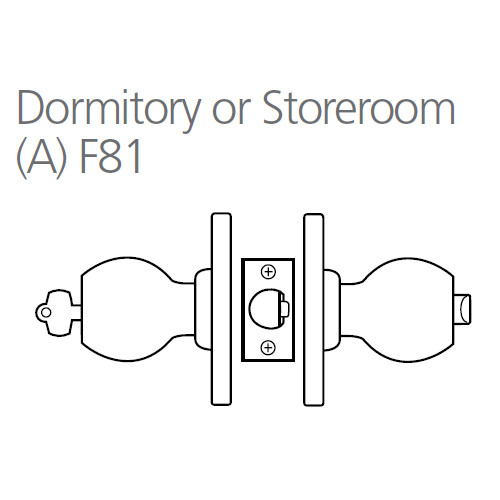

Dormitory/Storeroom Lock: Latch operated by rotating the inside knob, rotating the outside knob only when inside turn button is in unlocked position or turning the key in the outside knob. Outside knob is locked and unlocked by turning the inside button. Inside knob is always unlocked. Turn button must be manually rotated to unlock the outside knob.
Features and Benefits:
- Satin Chrome finish
- Backset: 3-3/4"
- Handing: Reversible
- Single keyed function
- Core is not included
- Core housing: 7-pin housing; accepts all BEST cores
- Roses: D - 3-3/8" concave
- Knobs: Solid brass or bronze in round style.
- Door thickness: 1-3/8" to 2" Standard
- Chassis: 2-1/16" diameter to fit 2-1/8" hole in door.
- Latch: 9/16" throw. Front 2-1/4 x 11/8" beveled. Latch housing fits 1" hole in edge of door.
- Strike: S3 - 4-7/8" x 1-1/4" with curved lip and box available (ANSI A115.2)
- Long bearing length in chassis for smooth, wear resistant operation.
