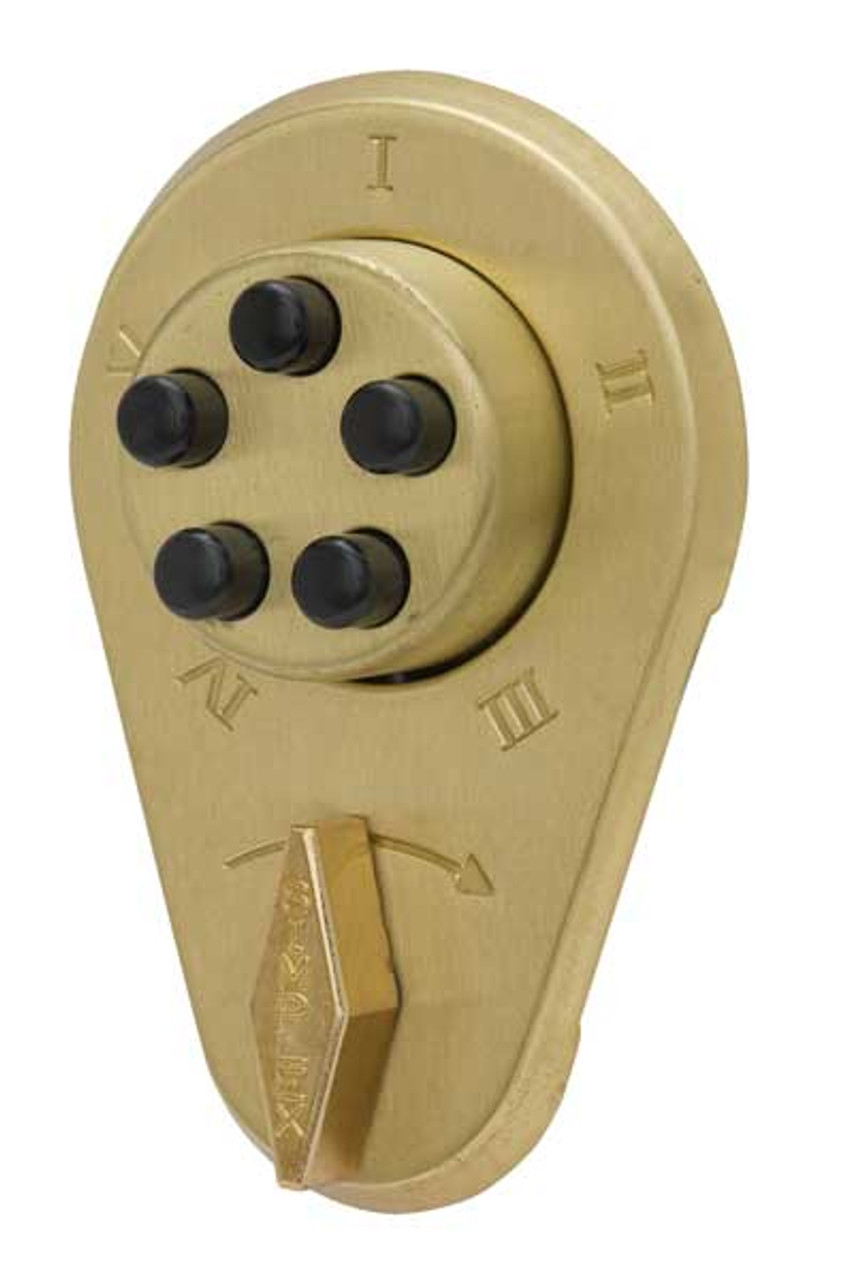

9350000-04-41 Simplex Spring Latch Lock with Holdback and Key Override in Satin Brass

Product Description

The Dormakaba Simplex 9350000-04-41 is a mechanical pushbutton lock providing combination-based access control without batteries or wiring. Built for commercial applications where reliability matters.

Key Features

• All-mechanical operation - no batteries to replace, no wiring required
• Single access combination with thousands of possible codes
• Combination changed at the keypad without removing lock from door
• Vandal-resistant solid metal pushbuttons
• Weather-resistant for indoor/outdoor installation

Technical Specifications

• Model: 9350000-04-41
• Series: Simplex 900 Series
• Function: Combination deadlatch, latch holdback, key override
• Finish: Satin Brass (US4/606)
• Grade: Commercial
• Backset: Not applicable (auxiliary lock)
• Latch Throw: 5/8" (16mm) deadlocking spring latch
• Door Thickness: 1-3/8" to 1-1/2" — thickness-specific, check your door before ordering
• Handing: Field reversible
• Fire Rating: N/A
• Warranty: 1 Year

Installation Notes

• Mounts through a bored door — door thickness must match the range above
• No electrical or low-voltage work required
• Template and mounting hardware included
• Ships LH - easily field reversed for RH doors

Dormakaba Simplex mechanical locks are specified by architects and security professionals for dependable access control. Lock Depot offers expert support on all Simplex products.

The key override cylinder is included. This lock ships with its key override cylinder — you do not need to order one separately. dormakaba lists the less-cylinder versions under their own distinct part numbers (for example 9102000 and 9352000), so a model without that designation comes with the cylinder. A spare or replacement override cylinder is part 74161.
