Product Description

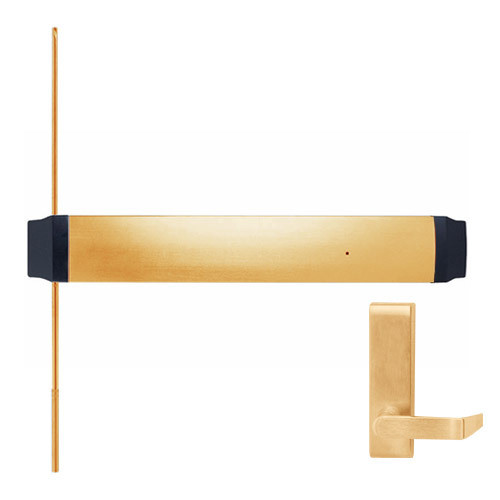

9547L-US10-RHR Von Duprin 9547 Series with 940L Lever Non Fire Rated Concealed Vertical Rod Device in Satin Bronze Finish
The Von Duprin 9547L-US10-RHR series of exit device for use on factory prepped steel doors, not available for wood doors. The 9547 series fully integrated within a door and combines a clean, tasteful appearance with von duprin's unrivaled standards of durability and performance. The 9547 series exit device is for reliable operation and longlasting durability and the streamlined, extruded aluminum pushpad is uniquely designed to exhibit grace under pressure. All 9547 exit devices are UL listed for panic exit hardware, and are certified to ANSI/BHMA A156.3, 2008, Grade 1. Its heavy duty construction and simple, yet effective mechanism are backed by traditional von duprin device.
The 9547 series has a "grooved mechanism case"
Features and Benefits:
- Satin Bronze finish
- ANSI Function: 08
- Handing: Right hand reversible
- Cylinders are not included
- Includes 940L standard trim ANSI/BHMA A156.3 Grade 1 certified
- Lever trim function - key locks and unlocks
- Hex key dogging feature standard
- Device lengths: 2'10" up to 4' for 30-5/32" device
- Device centerline from finished floor: 39-5/8" (1006 mm)
- Fasteners: Included for surface mounting to recessed door prep and through bolting to trim
- All 9547 series exit devices are UL listed for panic exit hardware
- Strike: Top - 338, bottom - 385 unfinished strikes included as always
- Latch bolt: Deadlocking -5/8" (16 mm) throw latchbolt standard
