Product Description
9847WDC-L-F-US4-4-RHR Von Duprin 9847WDC Series with 996L Lever Right Handed Fire Rated Wood Door Concealed Vertical Rod in Satin Brass
The 9847WDC-L-F-US4-4-RHR is a Von Duprin 9847WDC Series Wood Door Concealed Vertical Rod exit device in Satin Brass (US4/606), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When troubleshooting a 9847/9848 that won't latch, check the top bolt first. Concealed rod devices rely on precise alignment of internal components, and building settling can throw off the top bolt engagement. A simple strike adjustment often fixes what looks like a device failure.
| Specifications | |
|---|---|
| Part Number | 9847WDC-L-F-US4-4-RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847WDC |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Brass (US4/606) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9847WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- Satin Brass finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

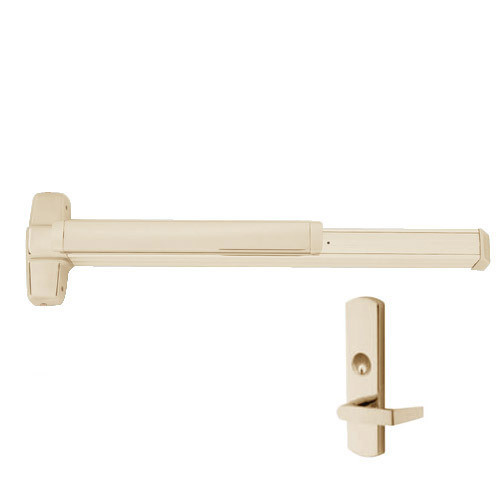

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
