Product Description

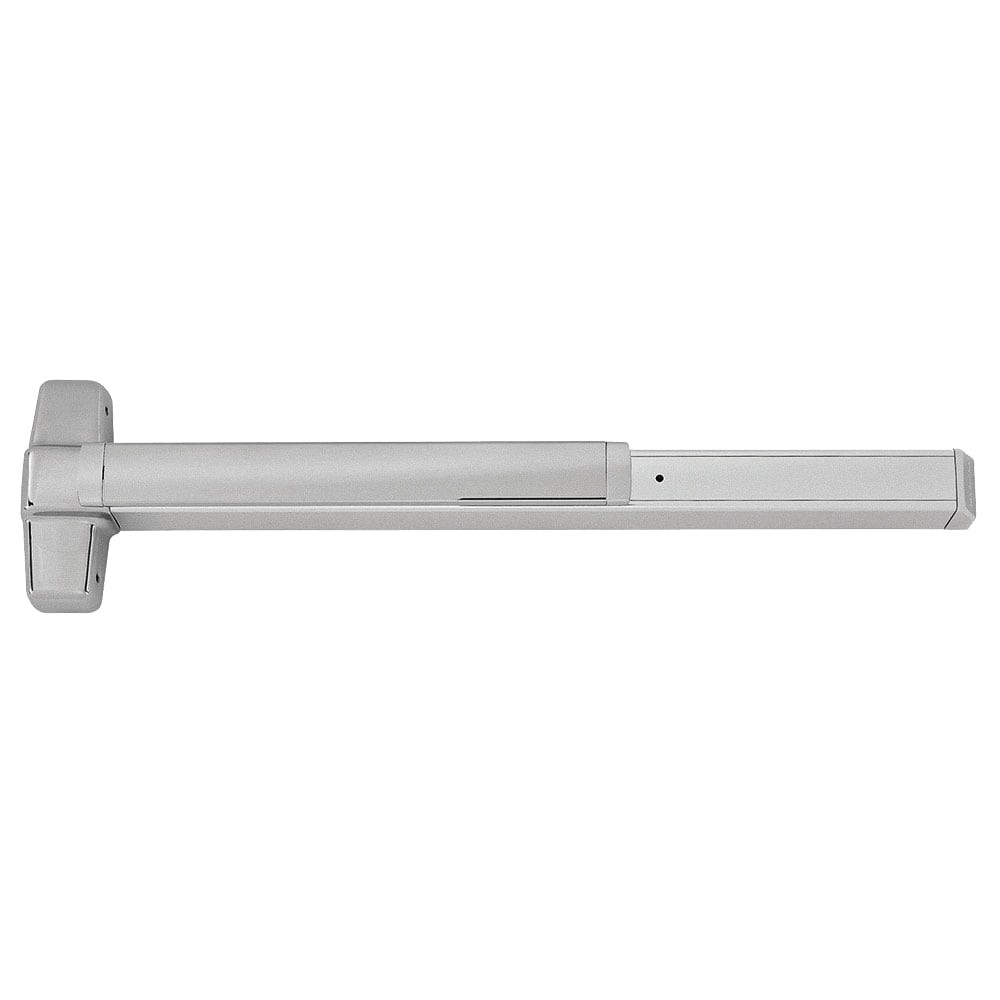

9847WDCL-DT-01 3 32D LHR Von Duprin 98 Series Dummy Trim Concealed Vertical Rod Exit Device in Satin Stainless Steel
The 9847WDCL-DT-01 3 32D LHR is a Von Duprin 9847WDC Series Wood Door Concealed Vertical Rod exit device with L-01 Lever trim in Satin Stainless Steel (US32D/630), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9847 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | 9847WDCL-DT-01 3 32D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847WDC |
| Function | Dummy Trim |
| Lever Design | L-01 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Stainless Steel (US32D/630) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 9847WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-01 Lever trim — pull operation from outside
- Satin Stainless Steel finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
