Product Description

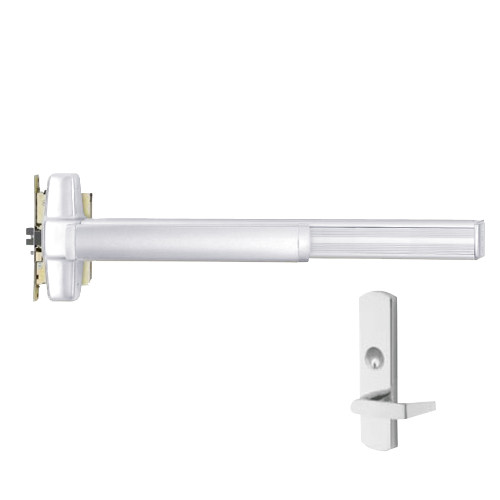

9875L-US28-3-LHR Von Duprin 9875 Series with 996L-M Lever Left Handed Mortise Lock Exit Device in Anodized Aluminum
The 9875L-US28-3-LHR is a Von Duprin 9875 Series Mortise Lock exit device in Aluminum (US28/628), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9875 mortise lock exit device combines exit device push bar with a mortise lock body recessed into the door edge. This gives you the latching security of a mortise lock with code-compliant panic hardware. Popular on storefront doors where you need both security and life safety.
| Specifications | |
|---|---|
| Part Number | 9875L-US28-3-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9875 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- Aluminum finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
