Product Description
99L-BE-02 4 US26 RHR Von Duprin 99 Series Lever SFIC Prep Surface Vertical Rod Exit Device Bright Chrome
The 99L-BE-02 4 US26 RHR is a Von Duprin 99 Series Rim exit device with L-02 Lever trim in Bright Chrome (US26/625), sized for 4' doors. SFIC Prep — prepped for Small Format Interchangeable Core. Order SFIC housing and core separately to match your keyway. Prepped for SFIC — order SFIC housing and core separately to match your keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Rim exit devices mount on the surface of the door without requiring mortise or internal routing. The 99 series rim devices are the easiest to install on retrofit jobs where door prep is limited. Great for quick code compliance upgrades on existing doors.
| Specifications | |
|---|---|
| Part Number | 99L-BE-02 4 US26 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | SFIC Prep |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Chrome (US26/625) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Prepped for SFIC |
| Fire Rating | Non Fire Rated |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-02 Lever trim — pull operation from outside
- Bright Chrome finish
- Hex key dogging standard — hold latch retracted during business hours

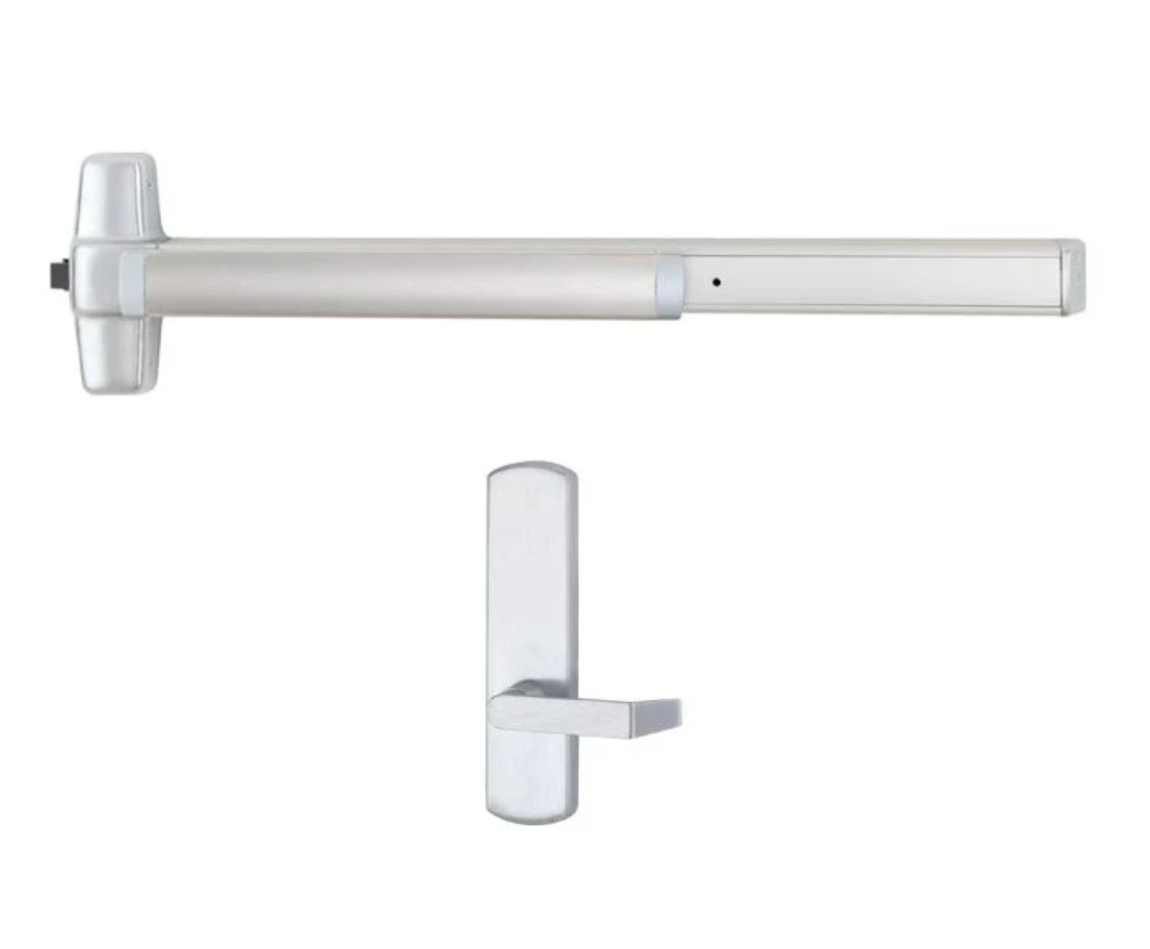

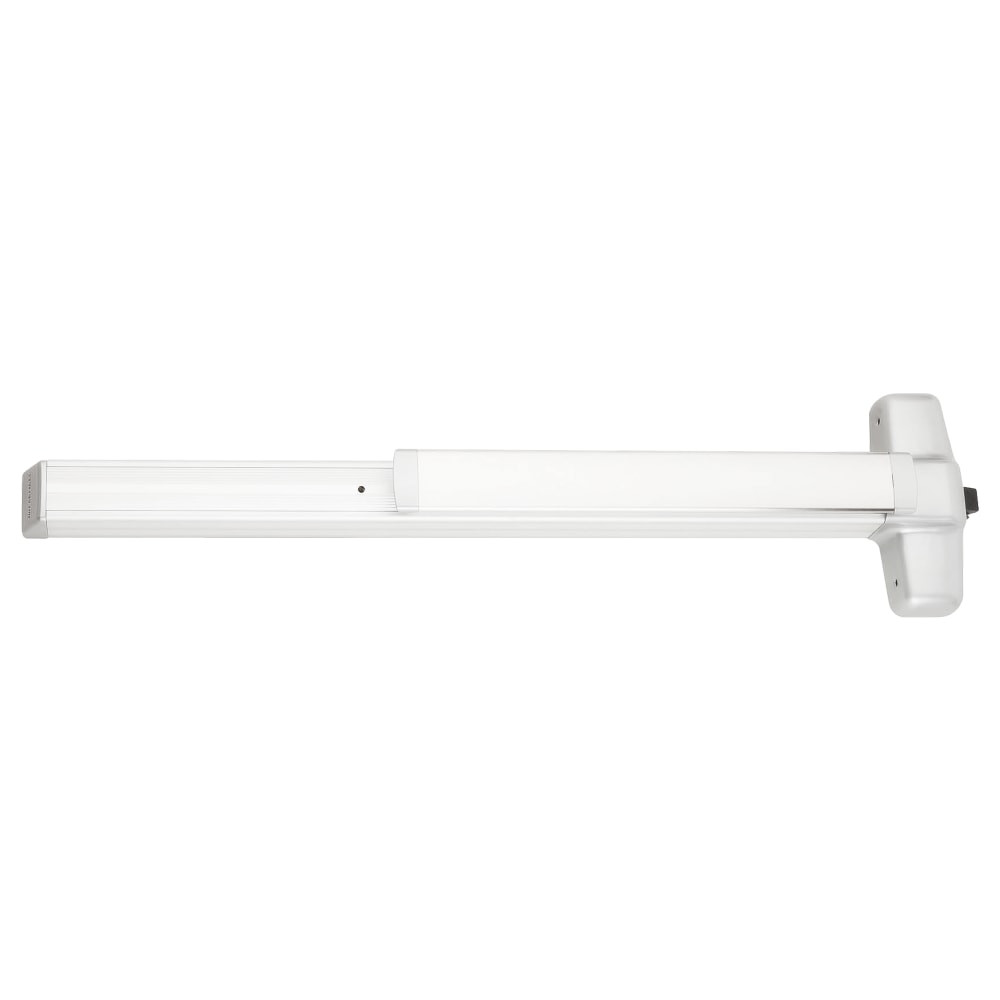

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
