Product Description
99L-LAT 3 315 RHR Von Duprin 99 Series L-LAT Surface Vertical Rod Exit Device Polished Bronze
The 99L-LAT 3 315 RHR is a Von Duprin 99 Series Rim exit device in Polished Bronze, sized for 3' doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Rim devices are visible on the door interior, so they're typically used on utilitarian doors (back exits, service doors, storage rooms) rather than customer-facing entrances. But they're reliable, affordable, and quick to install — spec them when aesthetics aren't the priority.
| Specifications | |
|---|---|
| Part Number | 99L-LAT 3 315 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Polished Bronze |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Polished Bronze finish
- Hex key dogging standard — hold latch retracted during business hours

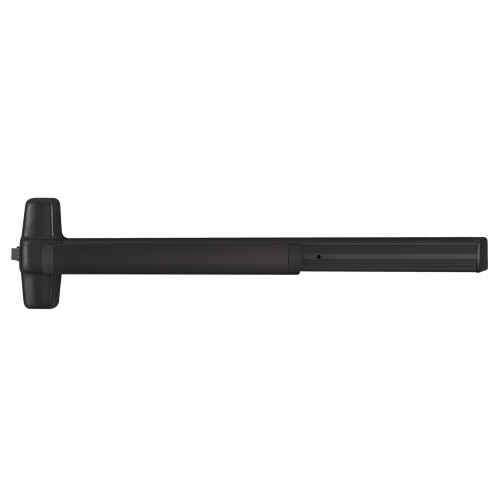

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Von Duprin 99 Series exit devices carry a 5-year mechanical warranty and 2-year electro-mechanical warranty from Allegion shipment date, covering material and workmanship defects. Covers all associated kits, subassemblies, and parts. Oil Rubbed Bronze (613) excluded — living finish that patinas over time. For warranty service, contact Allegion directly at 1-877-671-7011.Product Videos
Custom Field
Product Type Exit Device
Function L-LAT
Series 99
Finish Polished Bronze
Mount Type Surface Vertical Rod
Fire Rated Non Fire Rated
Cylinder Less Cylinder
