9K30Y16LSTK619 Best 9K Series Exit Heavy Duty Cylindrical Lever Locks with Curved Without Return Lever Design in Satin Nickel Finish
The Best 9K30Y16LSTK619 series is one of the toughest heavy-duty cylindrical locks on the market with the proven Grade 1 security. The 9K series is ideal for retrofit and new construction alike. The Best 9K series are listed by the BHMA for A156.2, Series 4000, Grade 1. This series is simple, safe and dependable protection.

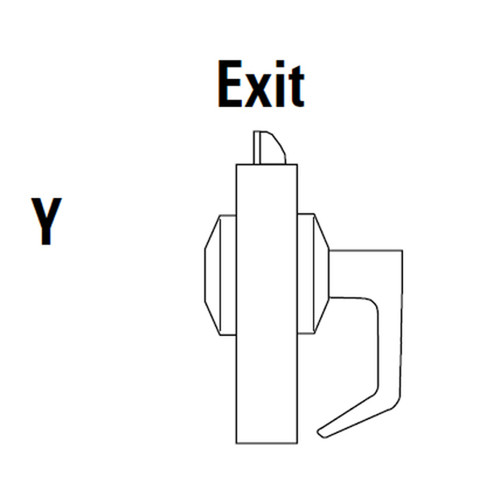

Exit: Latch operated by rotating the inside lever; Inside lever can not be locked. Always unlocked
Features and Benefits:
- Satin Nickel finish
- Backset: 2-3/4" standard
- Handing: Non Handed
- Non keyed function
- Door thickness: Available for 1-3/4" to 2-1/4" doors only
- Latch: Solid brass 9/16" throw. Front 2-1/4" x 1-1/8" beveled
- Strike: STK standard (2-3/4" x 1 1/8" with curved lip)
- Projection on door - Approx 2-3/4" when mounted on 1-3/4" door.

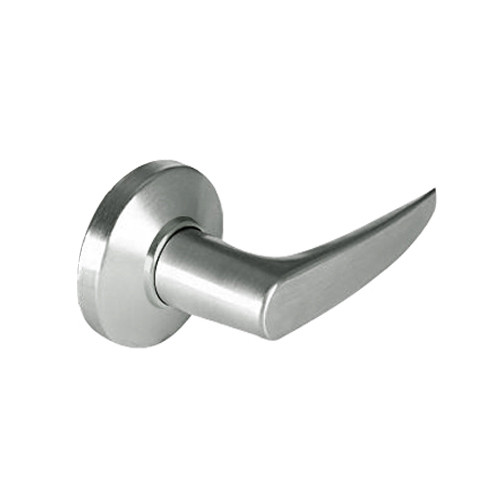

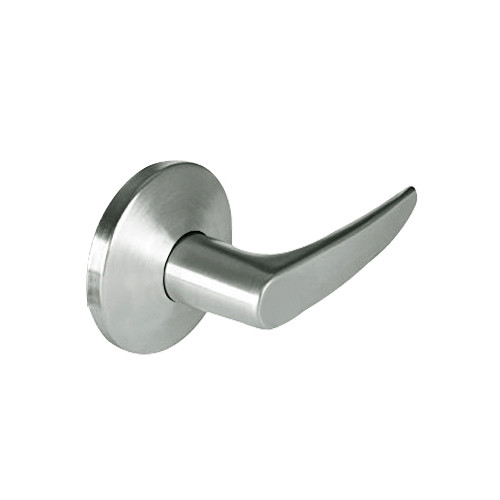

- Lever style: 16 - Curved without return
- Rose style: L - 3-1/2" convex no ring
- Deadlocking latchbolt standard
- Fasteners: All mounting screws are concealed. All machine screws (AMS) standard.
