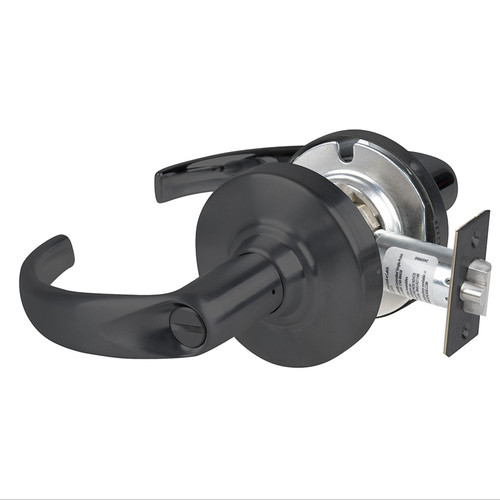

ALX44-SPA-622 Schlage ALX Series Cylindrical Lever Lock — Hospital Privacy Lock, Sparta Lever, Matte Black
On a patient room or a staff restroom, nobody should be hunting for a tool when the person inside needs help. The ALX44 has a push button in the inside lever and an emergency turn in the outside lever. Push the button and the outside lever goes dead. Rotate the turn from the hall and the button lets go, no key and no screwdriver needed.
This one is the Sparta lever on the Rhodes rose, in Matte Black. The latch is a spring latch. Want the outside lever to spin free when locked? Schlage sells that as Vandlgard, catalog number ALXV44. Pick your backset in the dropdown: 2-3/4" is standard, 2-3/8" is the other choice. Measure from the door edge to the center of the bore before you order.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | ALX | Schlage ALX Series, a Grade 2 cylindrical lever lock |
| Function | 44 | Hospital Privacy Lock: push button inside locks the outside lever; emergency turn outside |
| Lever | SPA | Sparta lever on the Rhodes rose |
| Finish | 622 | Matte Black (US19) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | ALX44-SPA-622 |
| Series | Schlage ALX Series |
| Function | Hospital Privacy Lock, ANSI F76 |
| Lock grade | ANSI/BHMA A156.2 Grade 2, Series 4000 |
| Lever | Sparta, Grade 1. 4-15/16" wide, 3-1/2" projection, pressure cast zinc |
| Rose | Rhodes, 3-7/16" diameter, wrought |
| Backset | 2-3/4" standard, 2-3/8" by the dropdown on this page |
| Door thickness | 1-3/8" through 1-3/4" |
| Latch | Spring latch, stainless steel bolt, 1/2" throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ANSI curved lip, 1-1/4" x 4-7/8", 1-3/16" lip, no dust box |
| Handing | Non-handed |
| Chassis | Steel, zinc dichromated |
| Finish | 622 / US19 Matte Black |
| Warranty | 10-year limited |
Compliance & Codes
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2. ANSI function F76. UL and cUL listed for A label fire doors: single door 4' x 8' or 4' x 10', 3-hour; pair of doors 8' x 8', 3-hour, or 8' x 10', 90-minute. The letter F and the UL symbol on the latch front show the listing. Complies with ICC A117.1. Schlage states all ALX lever designs meet ADA requirements. Meets FF-H-106C Series 161.
What's in the Box
One complete lock: Sparta levers and Rhodes roses, chassis, spring latch and ANSI strike. No cylinder and no key on this function.
Pro-Installer FAQ
Q: What is the difference between this and the ALX40?
A: The way in from the hall. The ALX44 has a turn in the outside lever you work by hand. The ALX40 has a slot that takes an emergency key or a small flat screwdriver.
Q: Can someone get locked out if the door shuts with the button pushed?
A: No. Closing the door releases the button and unlocks the outside lever. Turning the inside lever does the same.
Q: Is this a Grade 1 lock?
A: The Sparta lever is rated Grade 1 by Schlage, but the ALX Series as a lock is certified Grade 2. If the spec says Grade 1 for the whole lock, step up to the Schlage ND Series.
Lock Depot sells brand new Schlage products with the full manufacturer warranty.
