Product Description
ALX50J-ATH-613 Schlage ALX Series Cylindrical Lever Lock — Entrance/Office Lock, Athens Lever, Oil Rubbed Bronze

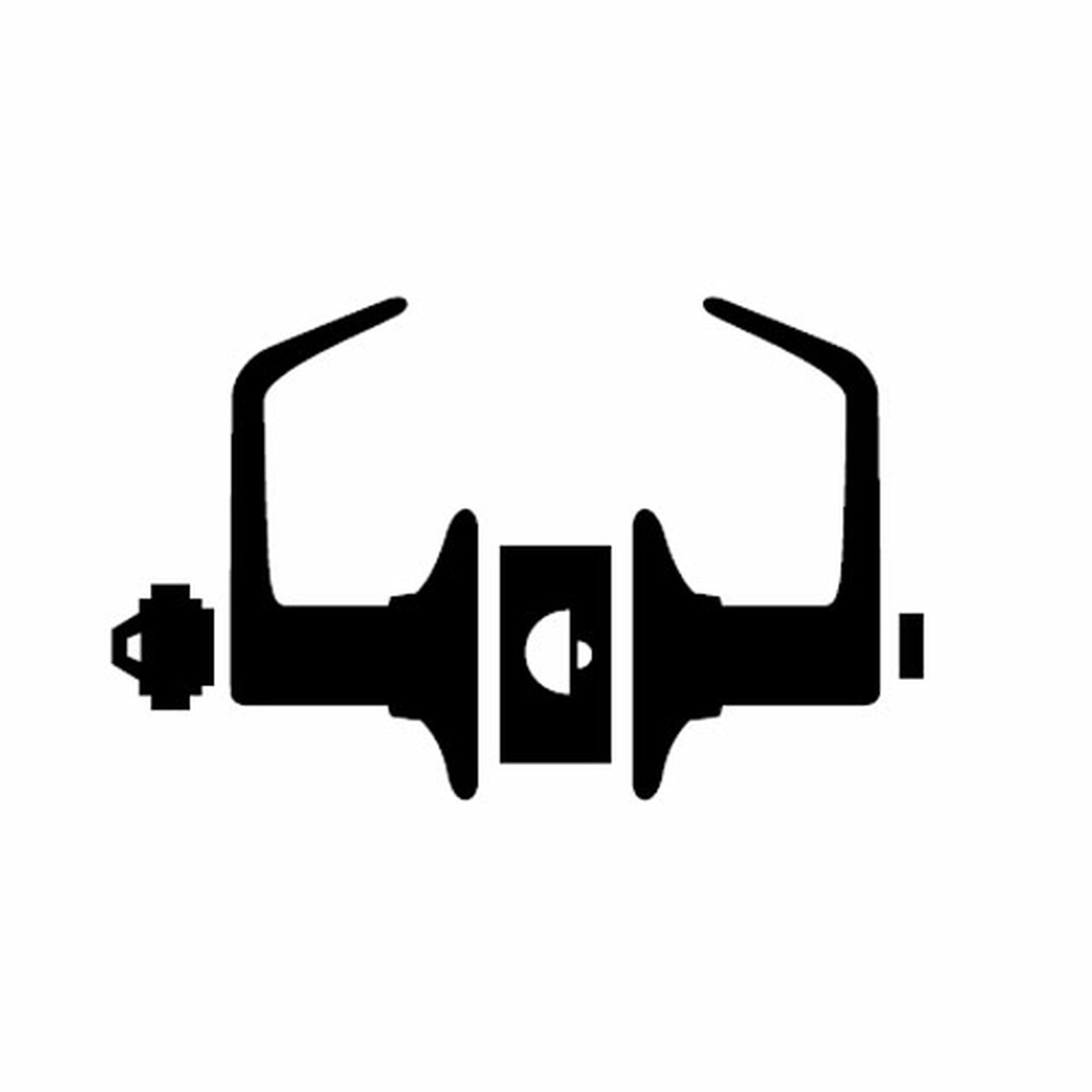

Somebody in an office wants to lock the door with a thumb and not hunt for a key. The ALX50 gives them that: a push button in the inside lever. Push it and the outside lever goes dead. A key from the hall, or a turn of the inside lever, lets it go again. Here is what catches people on the first day. The key unlocks this lock but it will not lock it. To lock up on the way out, push the button with the door open and pull the door shut. Turn the inside lever after pushing the button and you just unlocked it.
This one is the Athens lever on the Rhodes rose, with its lever prepped for a full size interchangeable core and no core in the box, in Oil Rubbed Bronze. The latch is a deadlatch. Want the outside lever to spin free when locked? Schlage sells that as Vandlgard, catalog number ALXV50. Pick your backset in the dropdown: 2-3/4" is standard, 2-3/8" is the other choice. Measure from the door edge to the center of the bore before you order.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | ALX | Schlage ALX Series, a Grade 2 cylindrical lever lock |
| Function | 50 | Entrance/Office Lock: push button inside locks the outside lever; key outside unlocks only |
| Cylinder | J | Less full size interchangeable core (FSIC). The core is not included |
| Lever | ATH | Athens lever on the Rhodes rose |
| Finish | 613 | Oil Rubbed Bronze (US10B) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | ALX50J-ATH-613 |
| Series | Schlage ALX Series |
| Function | Entrance/Office Lock, ANSI F82 |
| Lock grade | ANSI/BHMA A156.2 Grade 2, Series 4000 |
| Lever | Athens, Grade 1. 4-9/16" wide, 3-5/16" projection, pressure cast zinc |
| Rose | Rhodes, 3-7/16" diameter, wrought |
| Cylinder | Less FSIC. No core included |
| Keyway | Set by the core you buy |
| Backset | 2-3/4" standard, 2-3/8" by the dropdown on this page |
| Door thickness | 1-3/8" through 1-3/4" |
| Latch | Deadlatch, stainless steel bolt, 1/2" throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ANSI curved lip, 1-1/4" x 4-7/8", 1-3/16" lip, no dust box |
| Handing | Non-handed |
| Chassis | Steel, zinc dichromated |
| Finish | 613 / US10B Oil Rubbed Bronze |
| Warranty | 10-year limited |
Compliance & Codes
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2. ANSI function F82. UL and cUL listed for A label fire doors: single door 4' x 8' or 4' x 10', 3-hour; pair of doors 8' x 8', 3-hour, or 8' x 10', 90-minute. The letter F and the UL symbol on the latch front show the listing. Complies with ICC A117.1. Schlage states all ALX lever designs meet ADA requirements. Meets FF-H-106C Series 161.
What's in the Box
One complete lock: Athens levers and Rhodes roses, chassis, deadlatch, ANSI strike, no core. Order the full size interchangeable core separately.
Pro-Installer FAQ
Q: Why won't the key lock this from the hall?
A: It is not supposed to. On function 50 the key only unlocks; the inside button does the locking. If the key has to lock it from outside, you want the ALX70 classroom lock. If the door should always be locked, you want the ALX80 storeroom lock.
Q: Which core goes in this?
A: A full size interchangeable core, bought separately. This one is less core, so the lever arrives ready for it with nothing in it.
Q: Is this a Grade 1 lock?
A: The Athens lever is rated Grade 1 by Schlage, but the ALX Series as a lock is certified Grade 2. If the spec says Grade 1 for the whole lock, step up to the Schlage ND Series.
