Product Description

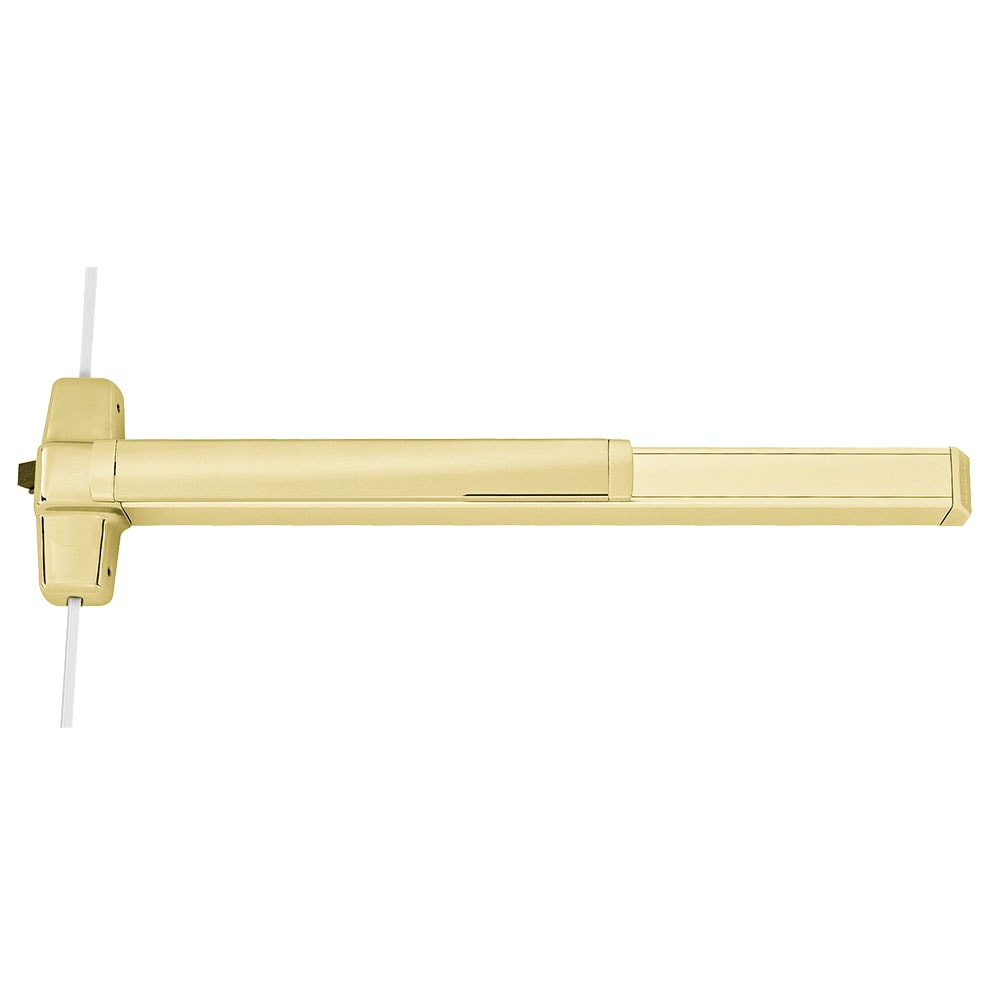

CD9857L-03 3 US4 LHR Von Duprin 98 Series Classroom Surface Three Point Latch Exit Device in Satin Brass
The CD9857L-03 3 US4 LHR is a Von Duprin 9857 Series Surface Three Point Latch exit device with L-03 Lever trim in Satin Brass (US4/606), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Three-point latch devices like the 9857 give you the security of a multipoint lock on an exit device. The rim latch handles the primary latching while top and bottom bolts prevent door warping and forced entry. If the customer needs SCIF-level security on an exit door, this is what you spec.
| Specifications | |
|---|---|
| Part Number | CD9857L-03 3 US4 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9857 |
| Function | Classroom |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Satin Brass (US4/606) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 9857 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-03 Lever trim — pull operation from outside
- Satin Brass finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
