Product Description

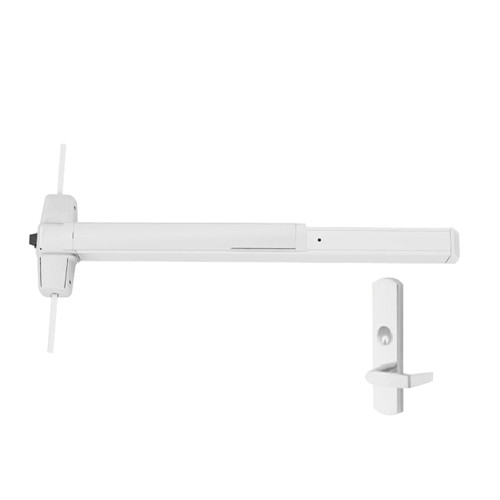

CD9857L-US26-4-LHR Von Duprin with 996L Lever Left Handed Surface Three Point Latch Device with Cylinder Dogging in Bright Chrome
| Part Number Breakdown: CD9857L-US26-4-LHR | |
|---|---|
| 9857 | 9857 Series Exit Device |
| CD | Controlled Dismiss |
| L | Lever Trim |
| US26 | Bright Chrome (BHMA 625) |
| 4 | 4 Foot Door |
| LHR | Left Hand Reverse |
The CD9857L-US26-4-LHR is a Von Duprin 9857 Series Surface Three Point Latch exit device with Cylinder Dogging (CD) in Bright Chrome, sized for 4 Foot doors. Lever Trim — outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately.
Cylinder Dogging (CD) — motorized dogging via access control, no key needed. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Three-point latching on the 9857 Series gives you top rod, bottom rod, AND rim latch engagement simultaneously. That's three separate points holding the door closed — ideal for high-security applications like data centers, storage rooms, and restricted areas where you need maximum holding force.
| Specifications | |
|---|---|
| Part Number | CD9857L-US26-4-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9857 Series |
| Electronics | CD — Cylinder Dogging (CD) |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three-point latching — top rod, bottom rod, and rim latch for maximum security) |
| Finish | Bright Chrome (US26/625) |
| Door Size | 4 Foot |
| Handing | Left Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9857 Series Surface Three Point Latch exit device — Grade 1 architectural-grade panic hardware
- Cylinder Dogging (CD) — motorized dogging via access control, no key needed
- Surface Three Point Latch (three-point latching — top rod, bottom rod, and rim latch for maximum security)
- Bright Chrome finish
- Ships less cylinder — order separately to match your keyway
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
