Product Description

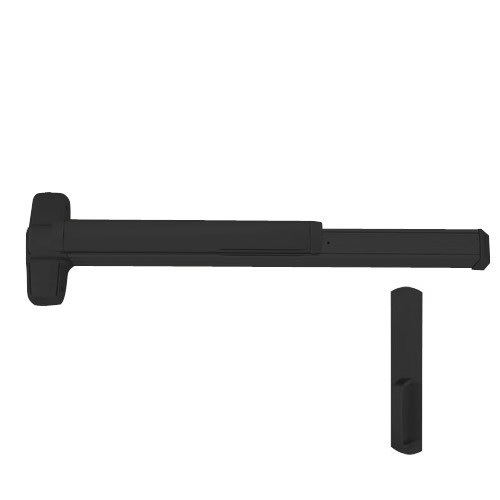

CD9947DT-315-3 Von Duprin 9947 Series Non Fire Rated Vertical Rod Exit Device with Cylinder Dogging in Black Finish
This device is for a 36" door
The Von Duprin CD9947DT-315-3 series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9947 vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.
The 9947 series has a "grooved mechanism case"
Features and Benefits:
- Black Finish
- ANSI Function: 02
- Dummy Trim function- Pull when dogged
- Sex bolts are not included
- Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (711mm to 914 mm) door size
- Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
- Non-handed operation provides greater flexibility
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 9947 series exit devices are UL listed for panic hardware
- Latch Bolt: Deadlocking top and bottom bolt, 5/8" (16mm) throw
- Strike: Top - 338 unfinished and Bottom - 385A unfinished strikes included as always
- Cylinder dogging feature is included
- Includes 990DT standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
- Cylinder must be ordered separately
- Device centerline from finished floor: 39-5/8" (1006 mm) standard and adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
