Product Description
CD9957L-US4-4-LHR Von Duprin 9957 Series with 996L Lever Left Handed Surface Three Point Latch Device with Cylinder Dogging in Satin Brass
The CD9957L-US4-4-LHR is a Von Duprin 9957 Series Surface Three Point Latch exit device in Satin Brass (US4/606), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9957 three-point latch device provides three engagement points — rim latch plus top and bottom bolts. This is your go-to for high-security applications or large doors where a single latch point isn't enough to keep the door sealed. Popular on data centers and clean rooms.
| Specifications | |
|---|---|
| Part Number | CD9957L-US4-4-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9957 |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Satin Brass (US4/606) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 9957 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- Satin Brass finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
- Hex key dogging standard — hold latch retracted during business hours

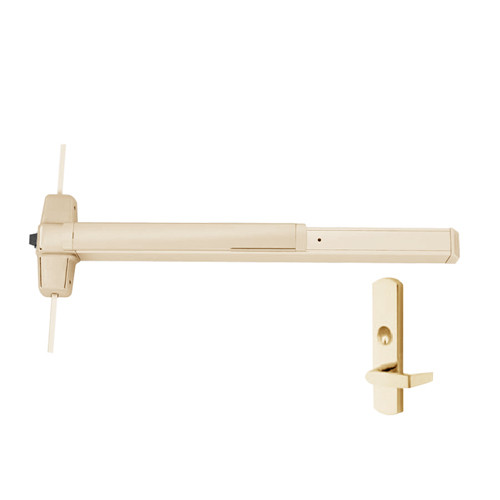

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
