Product Description

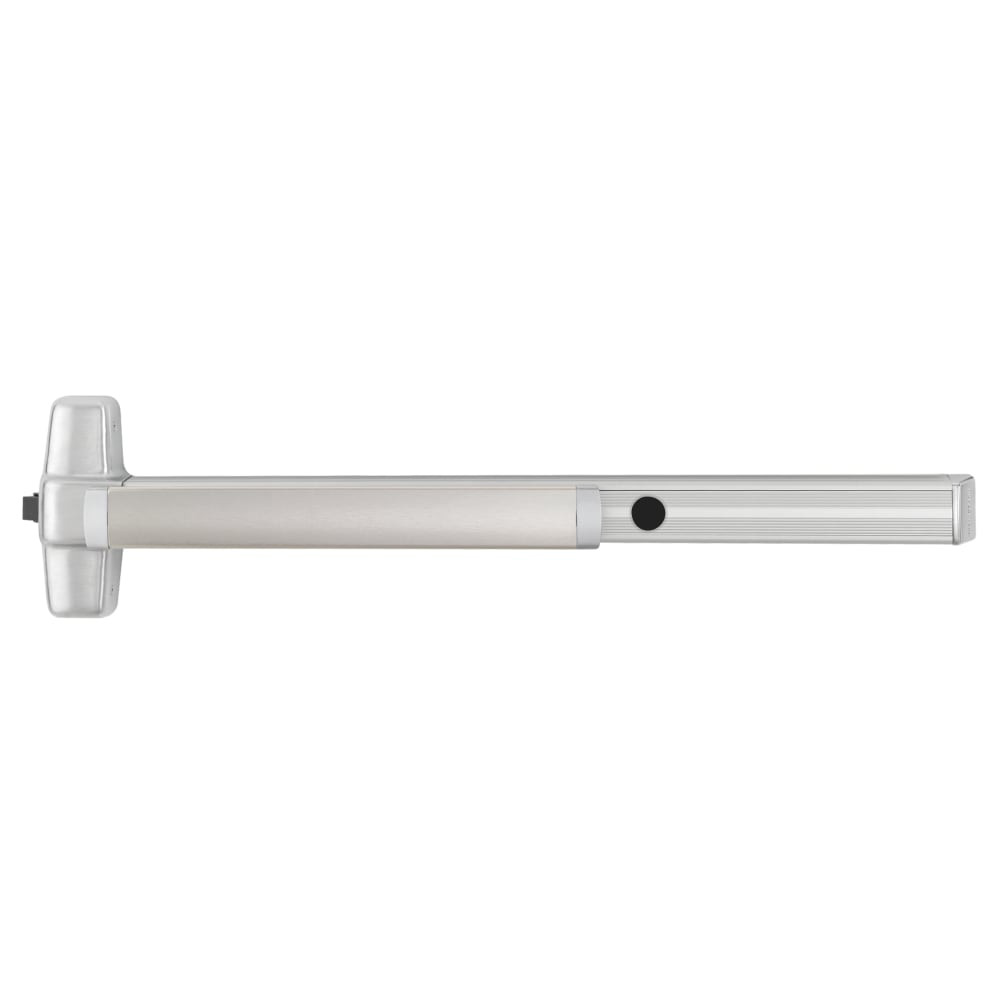

CD99L-DT-01 3 US28 LHR Von Duprin 99 Series Dummy Trim Rim Exit Device in Anodized Aluminum
The CD99L-DT-01 3 US28 LHR is a Von Duprin 99 Series Rim exit device with L-01 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Rim exit devices mount on the surface of the door without requiring mortise or internal routing. The 99 series rim devices are the easiest to install on retrofit jobs where door prep is limited. Great for quick code compliance upgrades on existing doors.
| Specifications | |
|---|---|
| Part Number | CD99L-DT-01 3 US28 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Dummy Trim |
| Lever Design | L-01 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-01 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
