Product Description
CD99L-DT-17 3 US28 RHR Von Duprin Concealed Door (CD) 99 Series Lever Dummy Surface Vertical Rod Exit Device Satin Aluminum
The CD99L-DT-17 3 US28 RHR is a Von Duprin 99 Series Rim exit device in Satin Aluminum (US28/628), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 99 series rim exit device is your fastest retrofit option. It mounts entirely on the inside surface of the door with no door prep required. On apartment buildings and rental properties where you can't modify the door, specify a rim device.
| Specifications | |
|---|---|
| Part Number | CD99L-DT-17 3 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Satin Aluminum finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
- Hex key dogging standard — hold latch retracted during business hours

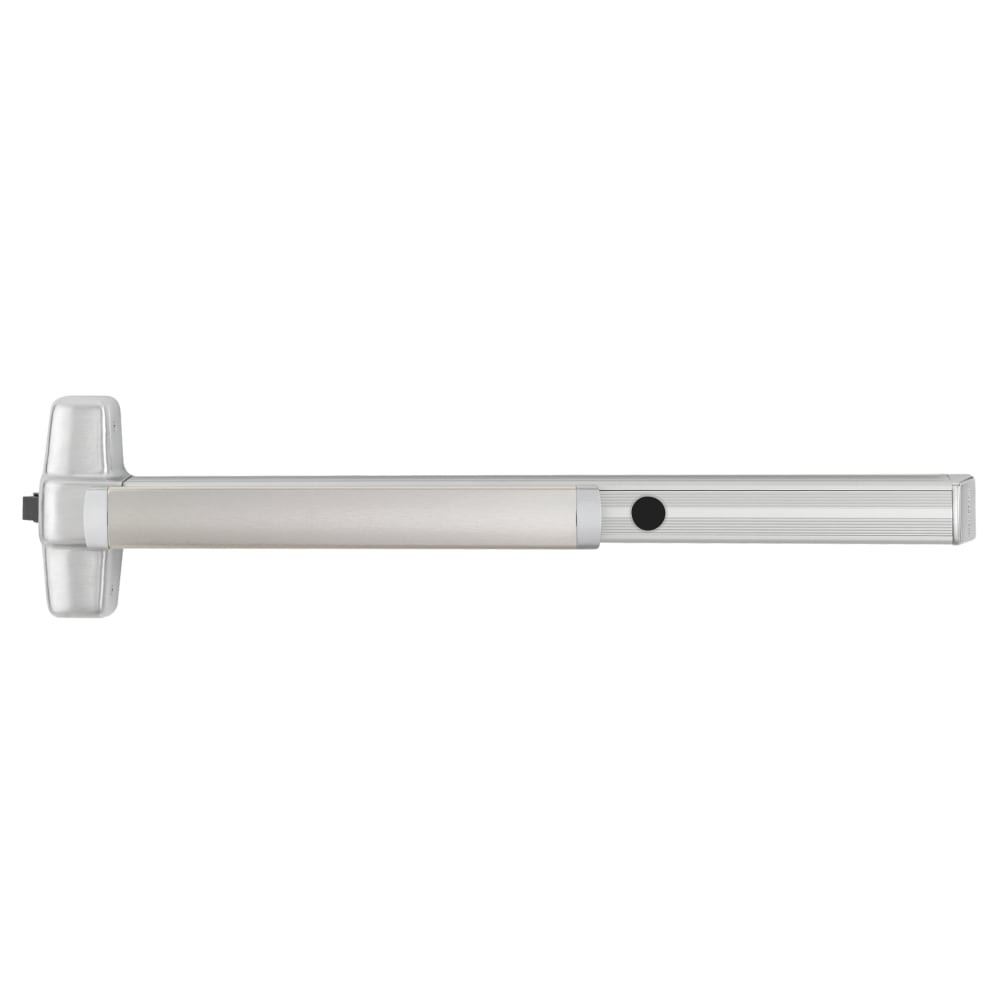

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
