Product Description

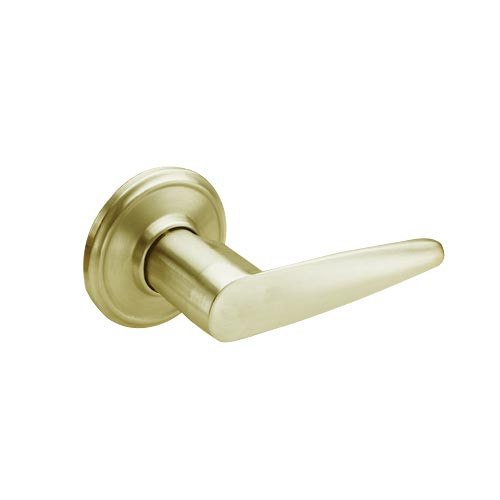

CL08-VC-04 Arrow Cylindrical Lock C Series Single Dummy with Virgo Lever Design in Satin Brass Finish
The Arrow CL08-VC-04 Single Dummy function lock is designed for light commercial applications. The return of the Comet brings with it the exceptional value and quality required to meet the demands of the single and multi-family housing markets. The C series are certified to BHMA A156.2, Series 4000, Grade 2. Combining a variety of lever designs, convenient installation and the Arrow benchmark for dependability, the C Series is perfect in most any space.

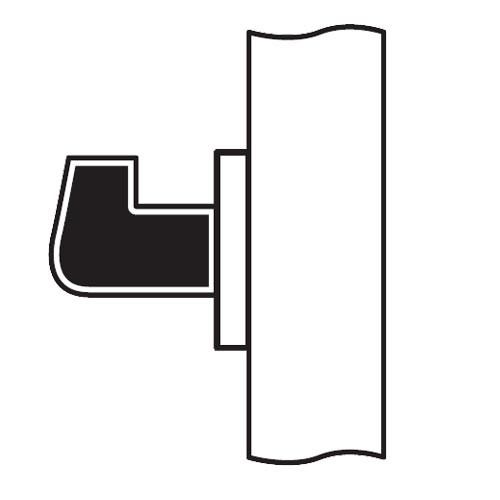

Single Dummy: Rigid trim for one side of door only. Used as pull or to match active trim.
Features and Benefits:
- Satin Brass finish
- Strike: 1-3/4" x 2-1/4", 1-1/4" lip, square corner
- Latch bolt: 1/2" throw, 1-1/8" front
- Backset: 2-3/4" or 2-3/8" Adjustable backset
- Includes 3 faceplates
- Virgo lever trim design
- Construction: Tubular chassis
- Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
- Handing: Non-handed
